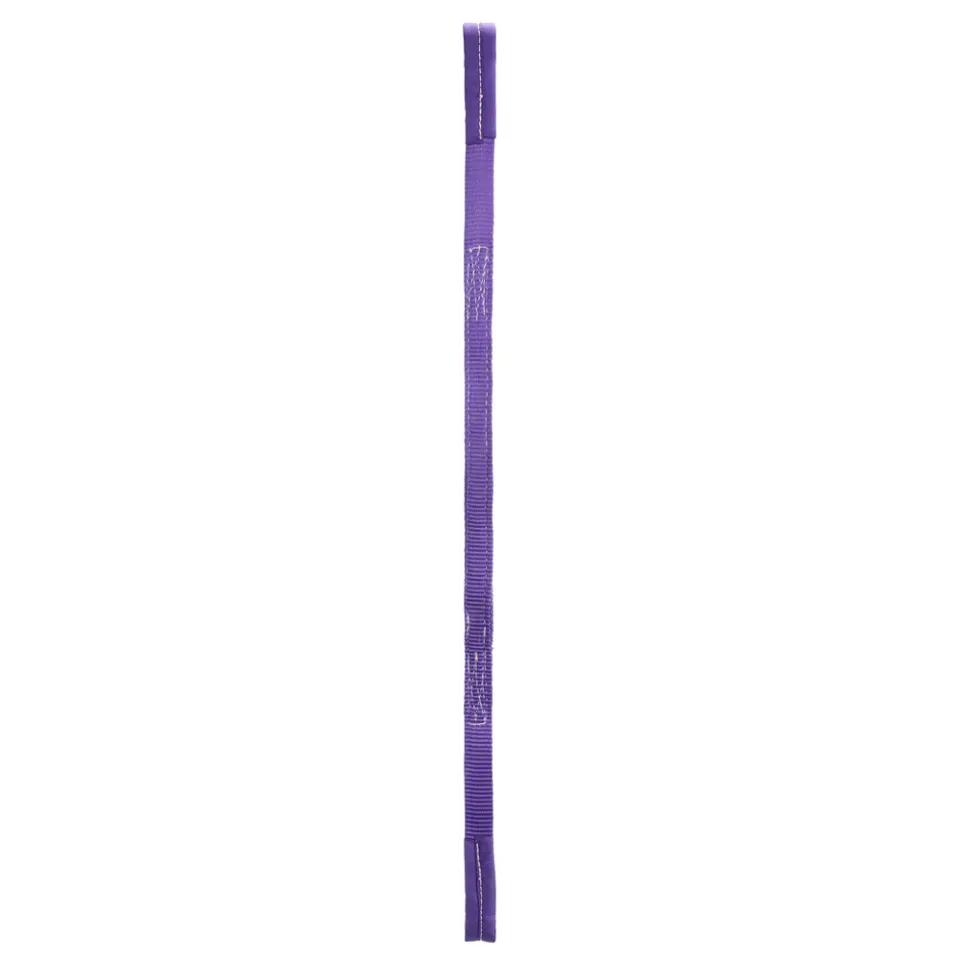

Name: Flat Sling 2ply Eco
Brand: SpanSet
SKU: 2002926
Price: 4.98 GBP
Availability: OutOfStock

Product Technical Information

Main Material
Polyester
Packaging Unit (PU)
pcs
Temperature Range
-40°C to +100°C
Packaging Unit (PU) Content
1

Product downloads and manuals

Flatslings Instruction Manual
(de de_CH en en_US es fr it nl fr_FR)
Download

Datasheet
Download

Technical Drawings

Variants information

Item Number	Item Name	WLL kg	Dimension L1	WLL t	Webbing Width B	Weight for 1m	Dimension L1 min	Loop Length	Loop Width	Webbing Thickness	Colour
2021053	WS 2ply 1000 1m	1000 kg	1 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2002926	WS 2ply 1000 2m	1000 kg	2 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2002927	WS 2ply 1000 3m	1000 kg	3 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2003386	WS 2ply 1000 4m	1000 kg	4 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2003843	WS 2ply 1000 5m	1000 kg	5 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2003844	WS 2ply 1000 6m	1000 kg	6 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2021054	WS 2ply 1000 7m	1000 kg	7 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2003845	WS 2ply 1000 8m	1000 kg	8 m	1 t	30 mm		0.2 m	300 mm	30 mm	5.2 mm	Purple
2002942	WS 2ply 10000 2m	10000 kg	2 m	10 t	300 mm	2.4 kg	2.6 m	1000 mm	160 mm	7.4 mm	Orange
2002943	WS 2ply 10000 3m	10000 kg	3 m	10 t	300 mm	2.4 kg	2.6 m	1000 mm	160 mm	7.4 mm	Orange
2003394	WS 2ply 10000 4m	10000 kg	4 m	10 t	300 mm	2.4 kg	2.6 m	1000 mm	160 mm	7.4 mm	Orange
2003867	WS 2ply 10000 5m	10000 kg	5 m	10 t	300 mm	2.4 kg	2.6 m	1000 mm	160 mm	7.4 mm	Orange
2003868	WS 2ply 10000 6m	10000 kg	6 m	10 t	300 mm	2.4 kg	2.6 m	1000 mm	160 mm	7.4 mm	Orange
2003869	WS 2ply 10000 8m	10000 kg	8 m	10 t	300 mm	2.4 kg	2.6 m	1000 mm	160 mm	7.4 mm	Orange
2021057	WS 2ply 2000 1m	2000 kg	1 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2002930	WS 2ply 2000 2m	2000 kg	2 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2002931	WS 2ply 2000 3m	2000 kg	3 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2003388	WS 2ply 2000 4m	2000 kg	4 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2003849	WS 2ply 2000 5m	2000 kg	5 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2003850	WS 2ply 2000 6m	2000 kg	6 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2021058	WS 2ply 2000 7m	2000 kg	7 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2003851	WS 2ply 2000 8m	2000 kg	8 m	2 t	60 mm	0.6 kg	0 m	300 mm	40 mm	5 mm	Green
2027404	WS 2ply 3000 1m	3000 kg	1 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2002932	WS 2ply 3000 2m	3000 kg	2 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2002933	WS 2ply 3000 3m	3000 kg	3 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2003389	WS 2ply 3000 4m	3000 kg	4 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2003852	WS 2ply 3000 5m	3000 kg	5 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2003853	WS 2ply 3000 6m	3000 kg	6 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2021062	WS 2ply 3000 7m	3000 kg	7 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2003854	WS 2ply 3000 8m	3000 kg	8 m	3 t	90 mm	0.6 kg	1.5 m	400 mm	50 mm	5 mm	Yellow
2002934	WS 2ply 4000 2m	4000 kg	2 m	4 t	120 mm	0.9 kg	1.5 m	400 mm	70 mm	6.8 mm	Grey
2002935	WS 2ply 4000 3m	4000 kg	3 m	4 t	120 mm	0.9 kg	1.5 m	400 mm	70 mm	6.8 mm	Grey
2003390	WS 2ply 4000 4m	4000 kg	4 m	4 t	120 mm	0.9 kg	1.5 m	400 mm	70 mm	6.8 mm	Grey
2003855	WS 2ply 4000 5m	4000 kg	5 m	4 t	120 mm	0.9 kg	1.5 m	400 mm	70 mm	6.8 mm	Grey
2003856	WS 2ply 4000 6m	4000 kg	6 m	4 t	120 mm	0.9 kg	1.5 m	400 mm	70 mm	6.8 mm	Grey
2021064	WS 2ply 4000 7m	4000 kg	7 m	4 t	120 mm	0.9 kg	1.5 m	400 mm	70 mm	6.8 mm	Grey
2003857	WS 2ply 4000 8m	4000 kg	8 m	4 t	120 mm	0.9 kg	1.5 m	400 mm	70 mm	6.8 mm	Grey
2002936	WS 2ply 5000 2m	5000 kg	2 m	5 t	150 mm	1.2 kg	1.7 m	500 mm	80 mm	6.6 mm	Red
2002937	WS 2ply 5000 3m	5000 kg	3 m	5 t	150 mm	1.2 kg	1.7 m	500 mm	80 mm	6.6 mm	Red
2003391	WS 2ply 5000 4m	5000 kg	4 m	5 t	150 mm	1.2 kg	1.7 m	500 mm	80 mm	6.6 mm	Red
2003858	WS 2ply 5000 5m	5000 kg	5 m	5 t	150 mm	1.2 kg	1.7 m	500 mm	80 mm	6.6 mm	Red
2003859	WS 2ply 5000 6m	5000 kg	6 m	5 t	150 mm	1.2 kg	1.7 m	500 mm	80 mm	6.6 mm	Red
2021066	WS 2ply 5000 7m	5000 kg	7 m	5 t	150 mm	1.2 kg	1.7 m	500 mm	80 mm	6.6 mm	Red
2003860	WS 2ply 5000 8m	5000 kg	8 m	5 t	150 mm	1.2 kg	1.7 m	500 mm	80 mm	6.6 mm	Red
2002938	WS 2ply 6000 2m	6000 kg	2 m	6 t	180 mm	1.4 kg	2.1 m	700 mm	100 mm	7.2 mm	Grey
2002939	WS 2ply 6000 3m	6000 kg	3 m	6 t	180 mm	1.4 kg	2.1 m	700 mm	100 mm	7.2 mm	Grey
2003392	WS 2ply 6000 4m	6000 kg	4 m	6 t	180 mm	1.4 kg	2.1 m	700 mm	100 mm	7.2 mm	Grey
2003861	WS 2ply 6000 5m	6000 kg	5 m	6 t	180 mm	1.4 kg	2.1 m	700 mm	100 mm	7.2 mm	Grey
2003862	WS 2ply 6000 6m	6000 kg	6 m	6 t	180 mm	1.4 kg	2.1 m	700 mm	100 mm	7.2 mm	Grey
2003863	WS 2ply 6000 8m	6000 kg	8 m	6 t	180 mm	1.4 kg	2.1 m	700 mm	100 mm	7.2 mm	Grey
2002940	WS 2ply 8000 2m	8000 kg	2 m	8 t	240 mm	1.8 kg	2.3 m	800 mm	130 mm	7.2 mm	Blue
2002941	WS 2ply 8000 3m	8000 kg	3 m	8 t	240 mm	1.8 kg	2.3 m	800 mm	130 mm	7.2 mm	Blue
2003393	WS 2ply 8000 4m	8000 kg	4 m	8 t	240 mm	1.8 kg	2.3 m	800 mm	130 mm	7.2 mm	Blue
2003864	WS 2ply 8000 5m	8000 kg	5 m	8 t	240 mm	1.8 kg	2.3 m	800 mm	130 mm	7.2 mm	Blue
2003865	WS 2ply 8000 6m	8000 kg	6 m	8 t	240 mm	1.8 kg	2.3 m	800 mm	130 mm	7.2 mm	Blue
