LiftSuit

GBP 997.50

VAT not included

LiftSuit

Providing Support - Anytime, Anywhere

GBP 997.50

VAT not included

In stock.
Estimated delivery time: 1 to 3 Days
Item Number: 2021238
LiftSuit 2.0
Size S/M
  • Reduce workload, muscle fatigue and exhaustion.
  • Relieve the back and hip muscles while lifting as well as working in a forward leaning position.
  • Working in a forward leaning and kneeling position.
  • Lightweight [ < 0.9kg ]
  • Foster a proper lifting posture.
  • Requires personalised advice for its correct application, please contact us.

Select Model

GBP 997.50

VAT not included

In stock.
Estimated delivery time: 1 to 3 Days

...

Supports your back and hip muscles

Provide a set of external muscles on your back

It functions as a layer of additional muscles on the outside of your body to reduce the load on your own muscles.

...

Muscle activity reduction

Prevent your muscles from fatiguing

...

Lightweight

Made from advanced materials

Selection of the most advanced materials to achieve the lightest exoskeletons on the market.

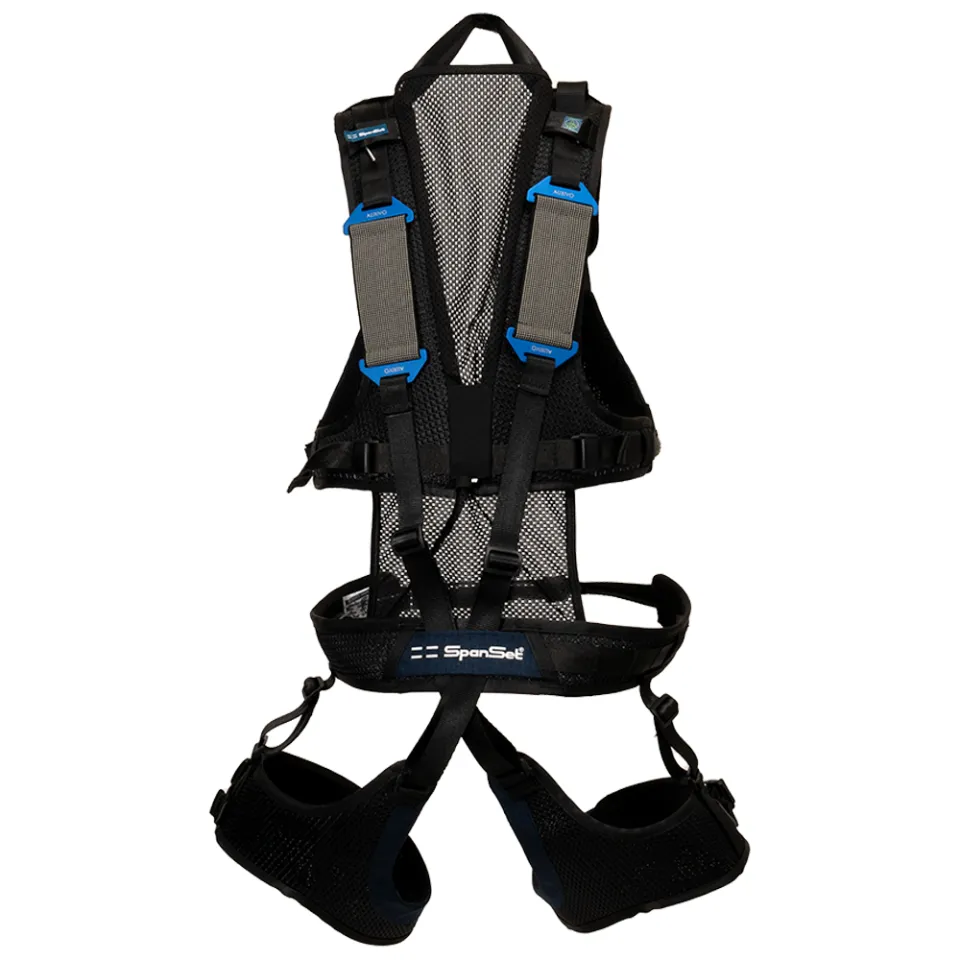

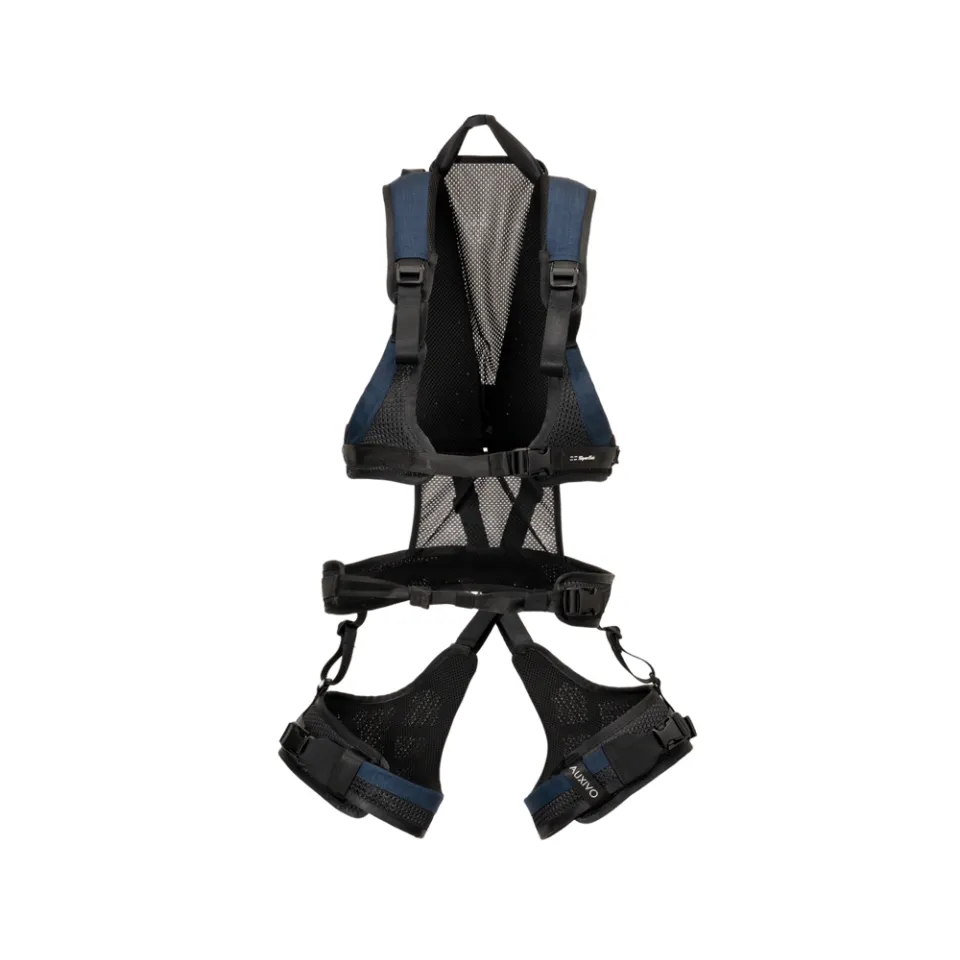

LiftSuit - Wearable Exoskeleton that is worn like clothes!

Versatile support system that provides support for its users' back- and hip muscles anytime and anywhere they need it.

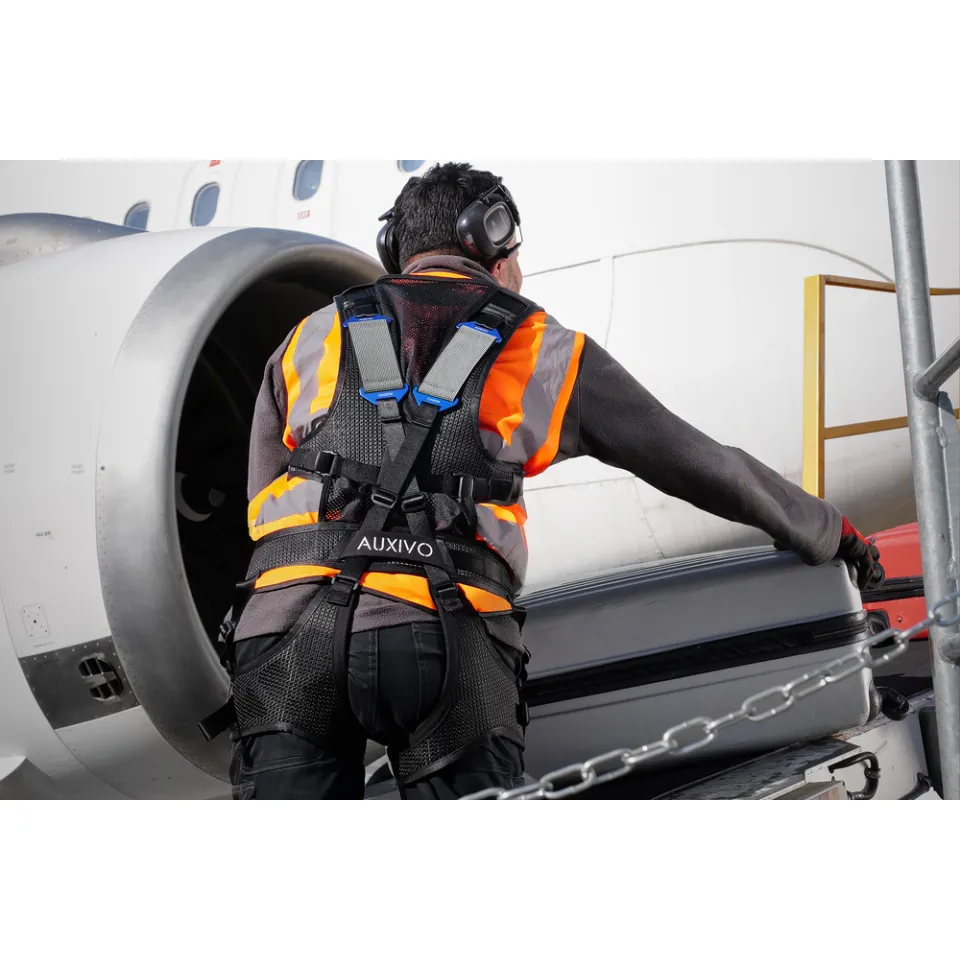

Use in many situations where traditional means, such as cranes or conveyor belts cannot be deployed, e.g. inside airplane holds or buildings.

Benefits

  • Support for back & hip muscles working in a forward-leaning posture.
  • Reduce workload, muscle fatigue and exhaustion.
  • Relieve the back and hip muscles.
  • Lightweight [ < 0.9kg ] .
  • Foster a proper lifting posture.
  • No movement restrictions use anytime, anywhere.

What kind of work is supported?

The LiftSuit was developed for all applications in which workers frequently lift objects or work in a forward-leaning position.

  • Lifting Objects - While lifting from below hip-level, the integrated elastic elements store energy when users bend forward, and releases the energy when she/he starts lifting the object.
    User gets additional energy that can relieve the back and hip muscles. Additionally, the elastic elements foster a proper lifting posture.
    The LiftSuit does not only support normal lifting, it also supports lifting and handling objects while working on the knees.

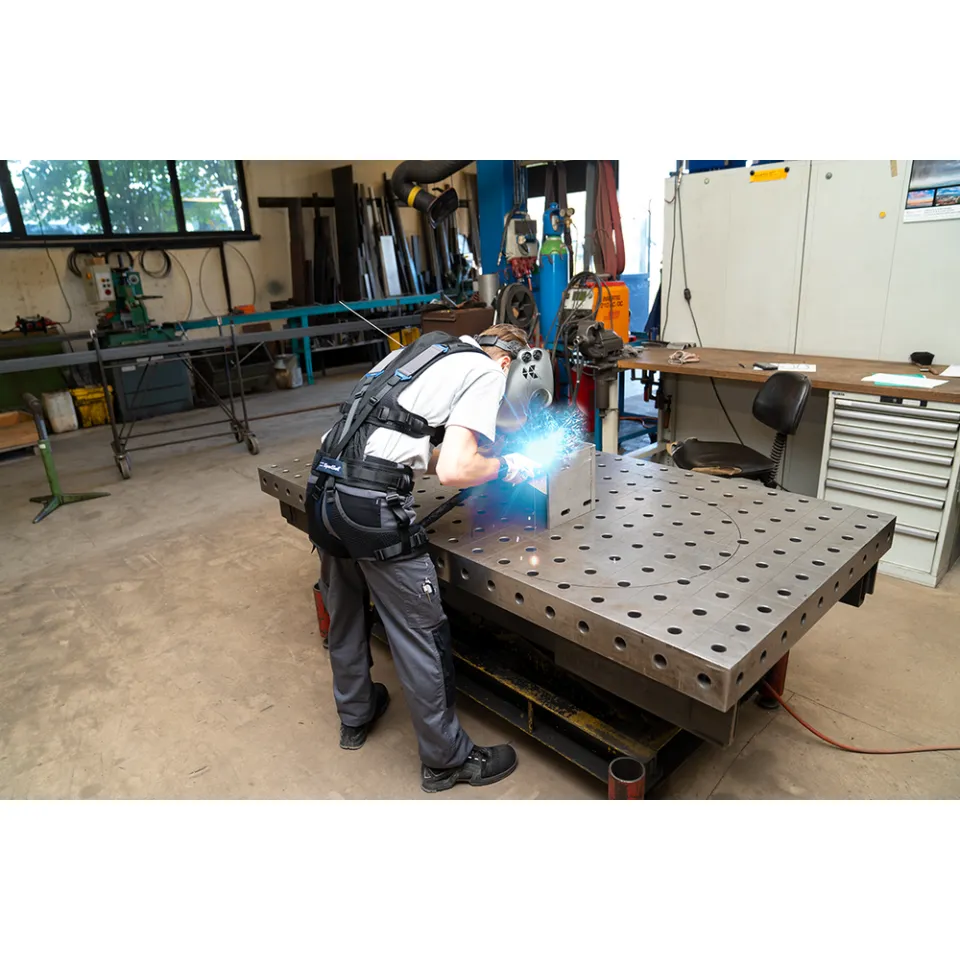

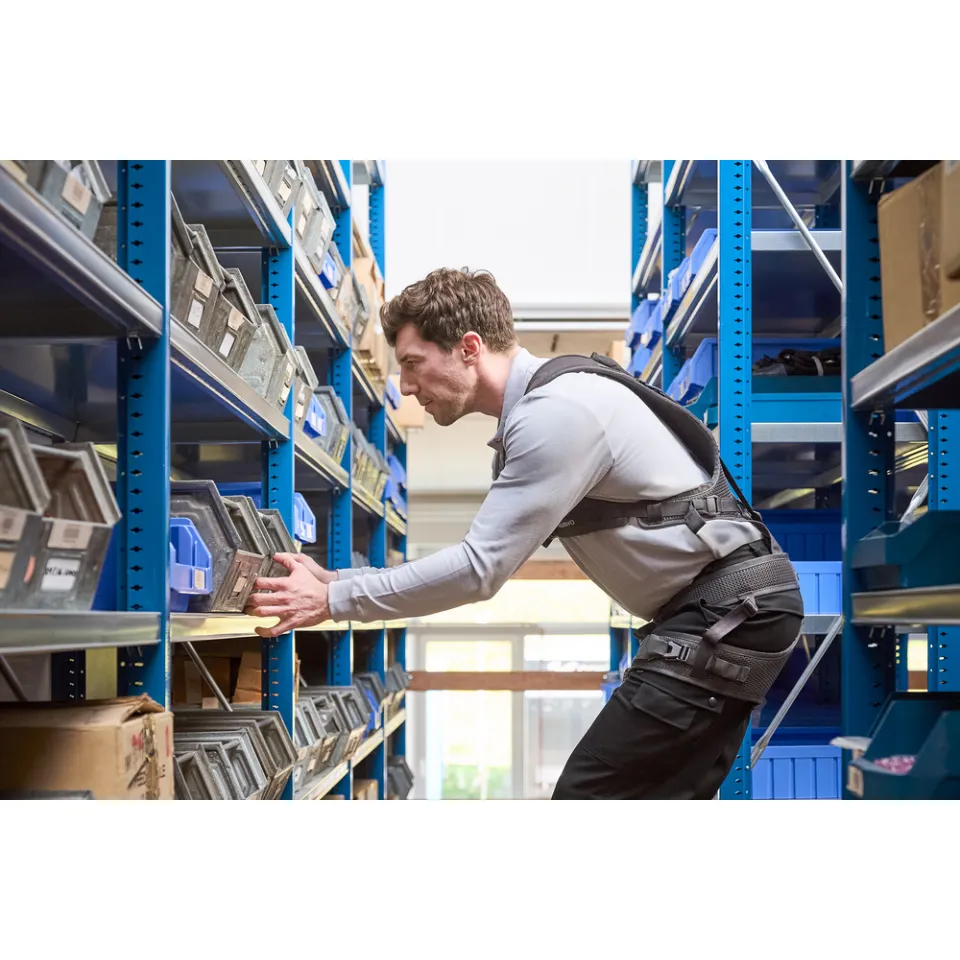

  • Forward-Leaning Posture - Working for hours in a forward-leaning posture even without any additional weight can strain your back muscles as they carry your upper body weight.
  • Anytime - Anywhere - Use in confined spaces, moving vehicles, standing and kneeling  without movement restrictions.

How it Works​

LiftSuit acts like a set of additional, external muscles to unload the back and hip muscles while lifting as well as working in a forward leaning position.

Integrated, specially developed textile springs store energy which is then used to support the user.

Easy-to-use, small and lightweight support system that users can wear without being constrained. Users can activate, deactivate and adjust the support manually on demand.

Results

LiftSuit significantly reduces the load on the back and hip muscles when lifting objects or remaining in a forward-leaning posture.

60º leaning while kneeling

  • Upper arm muscle load reduction 33%
  • Back muscle load reduction 34%
  • Hip muscle load reduction 26%
  • Gluteus muscle load reduction 19%

60º leaaning in standing

  • Upper arm muscle load reduction 43%
  • Back muscle load reduction 34%
  • Hip muscle load reduction 28%
  • Gluteus muscle load reduction 10%

Example : The strain on the back and hip muscles is reduced by 25 to 60% when carrying a load of 5 to 20 kilograms.

Product Technical Information

  • Nettogewicht kg: 0.9 kg
  • Packstückdimension L x B x H: 36 cm x 24 cm x 16 cm

Product downloads and manuals

Datasheet
Download
LiftSuit Performance Sheet
(en en_US)
Download

(en en_AU en_US)
Download

Item Number Item Name Kleidergösse EU Abmessungen L x B x H Rückenlänge Brustumfang Hüftumfang Oberschenkelumfang
2021238 LiftSuit 2.0 S/M 100 cm x 30 cm x 15 cm 40 cm 72 - 86 cm 69 - 100 cm 49 - 59 cm
2021239 LiftSuit 2.0 L/XL 110 cm x 40 cm x 15 cm 46 cm 87 - 107 cm 86 - 120 cm 57 - 67 cm
