Overcentre Buckle Straps 1000/50

Lashing straps for light goods delivery vehicles where track is fitted

Overcentre Buckle Straps 1000/50

Lashing straps for light goods delivery vehicles where track is fitted

  • 1.2m fixed length to provide the ideal position of the Overcentre buckle.
  • 3.5m total length to suit a 2.5 metre width vehicle
  • Overcentre buckle secures the load safely while preventing over tensioning
  • 50mm Polyester webbing for resistance to wear
  • Zinc plated buckle and end fittings to avoid corrosion
  • Also available with a selection of alternative fittings to suit different track styles.
  • “TSB” Turned and Sewn Back = To avoid overcentre buckle being accidentally unthreaded.
Product Technical Information
Technical Drawings
Variants information
Product downloads and manuals

Select Model

OC01148 1000/50 2pc 3.5m DPS
Overcentre Buckle 1000daN / 50mm Webbing 2-Part 3.5m with Double Pin Shoes
Item Number: 2024495 | SSUK ERP Code: 01148-071-3.5m
GBP 39.38
VAT not included
In stock. Available within 3 to 5 Days
  • 1.2m fixed length to provide the ideal position of the Overcentre buckle.
  • 3.5m total length to suit a 2.5 metre width vehicle
  • Overcentre buckle secures the load safely while preventing over tensioning
  • 50mm Polyester webbing for resistance to wear
  • Zinc plated buckle and end fittings to avoid corrosion
  • Also available with a selection of alternative fittings to suit different track styles.
  • “TSB” Turned and Sewn Back = To avoid overcentre buckle being accidentally unthreaded.
From:
GBP 25.73
VAT not included

Select Model

OC01148 1000/50 2pc 3.5m DPS
Overcentre Buckle 1000daN / 50mm Webbing 2-Part 3.5m with Double Pin Shoes
Item Number: 2024495 | SSUK ERP Code: 01148-071-3.5m
GBP 39.38
VAT not included
In stock. Available within 3 to 5 Days

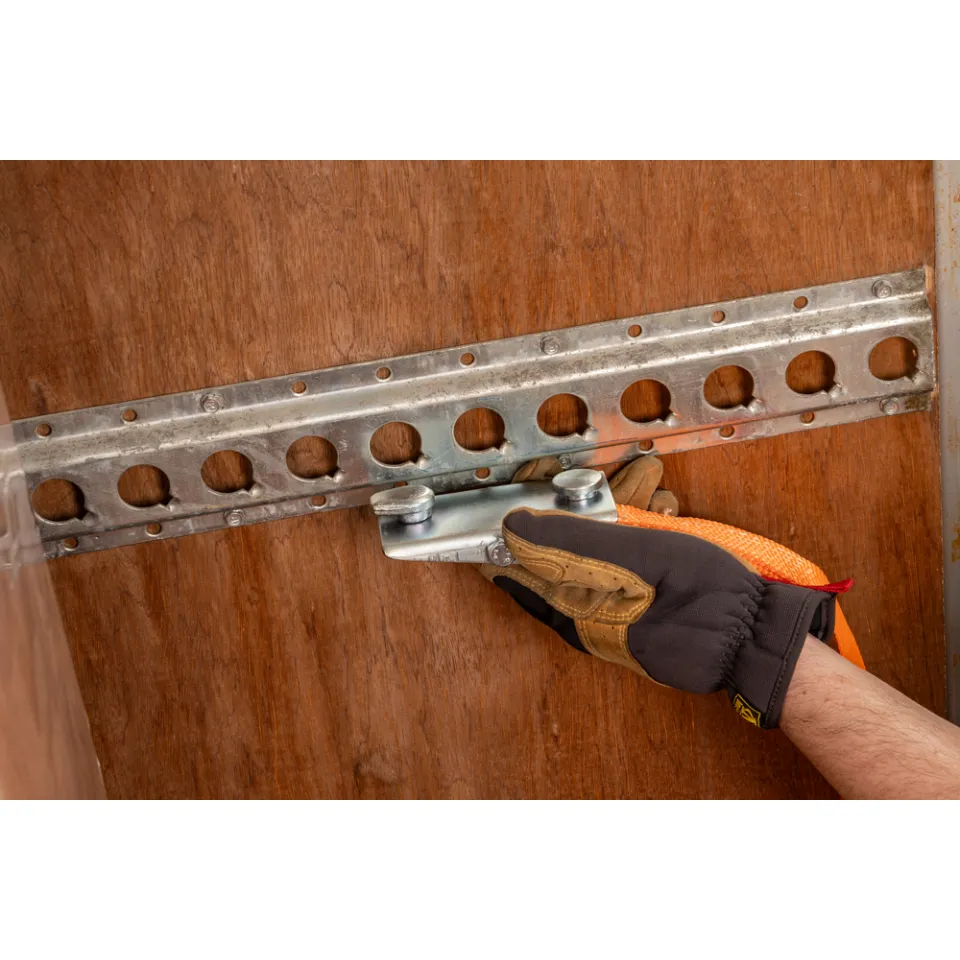

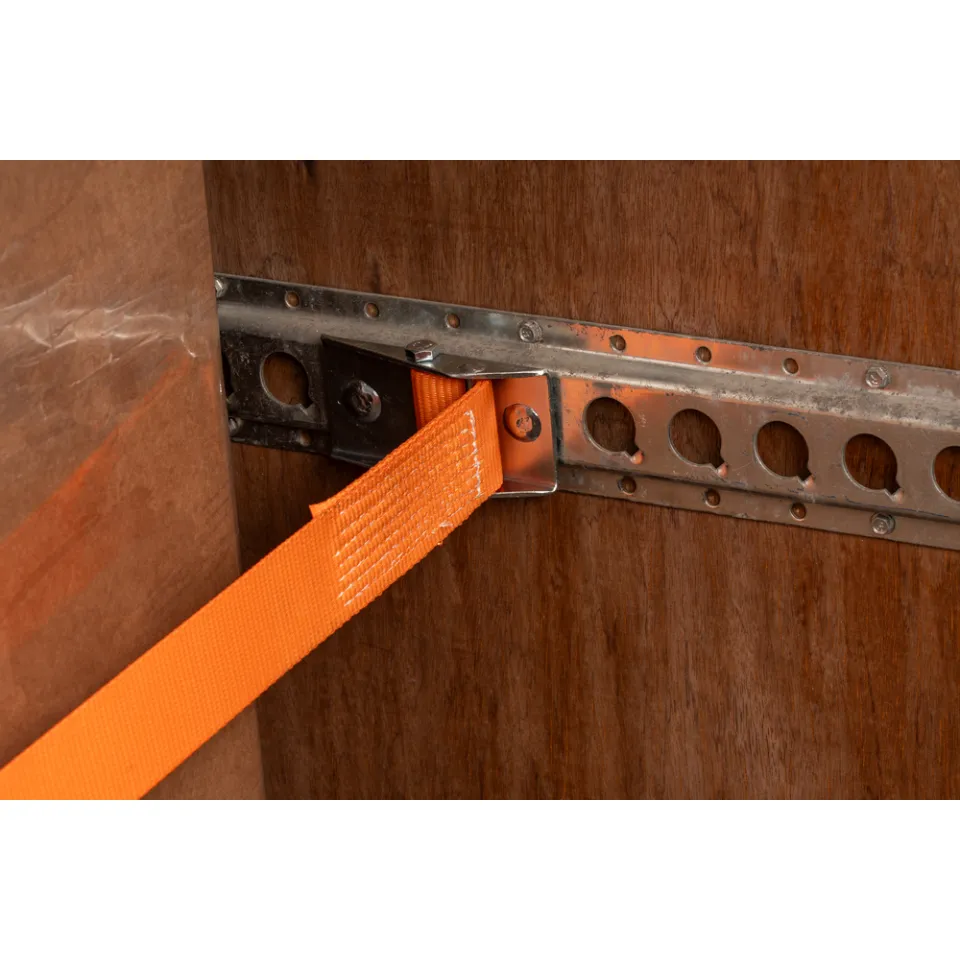

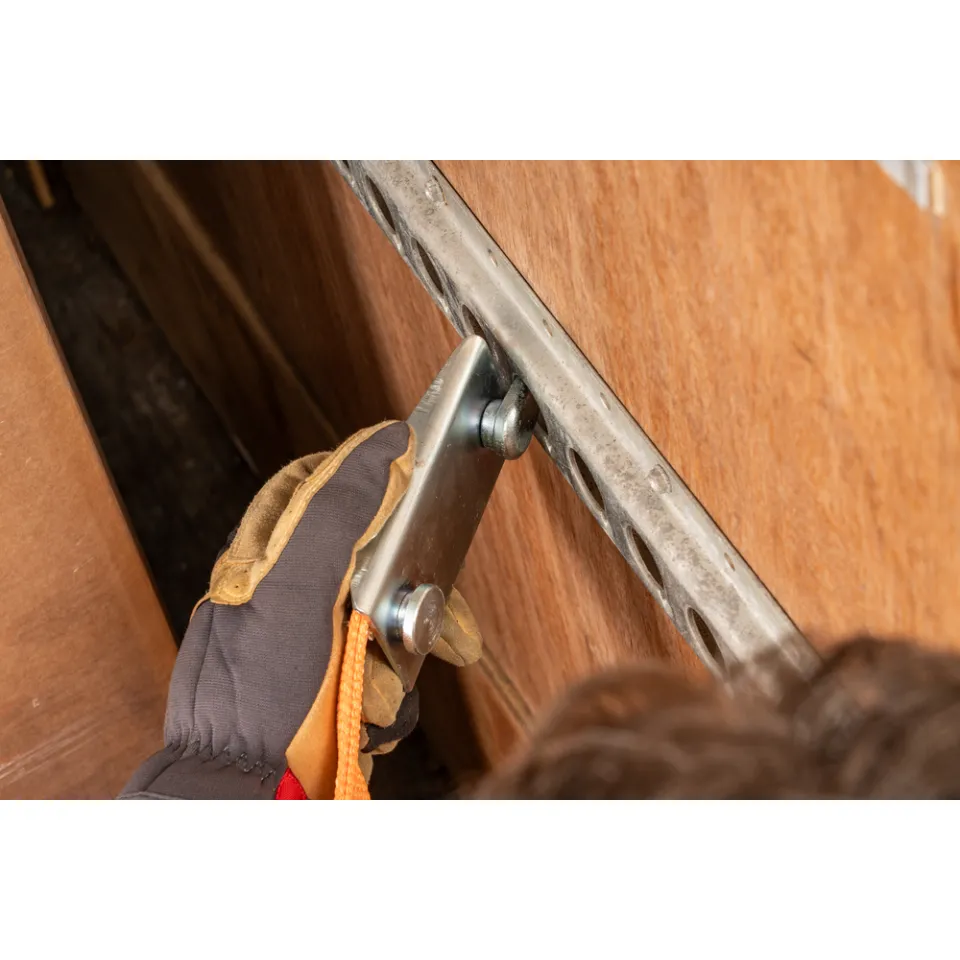

Typically used by dedicated delivery box vans and trailers with round hole track fitted.

The Overcentre buckles prevent the driver creating too much tension in the lashing strap and avoid the lashing damaging the load as it is tightened.

Overcentre buckle assemblies are generally supplied Turned and Sewn Back (TSB) to ensure the buckle is correctly threaded.

Product Technical Information

  • Ratchet Component
    01148 Overcentre Buckle
  • Lashing Type
    Two-piece
  • Webbing Component

  • Lashing Capacity
    1000 daN
  • Dimension L1
    3.5 m
  • Dimension L2
    1.2 m
  • Webbing Width B
    50 mm
  • Webbing Material
    Polyester, thermofixed and low-stretch <4%
  • Main Material
    Polyester
  • Norms
    EN 12195-2: 2001
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1
  • Colour
    Orange

Technical Drawings

Product technical drawing

Variants information

Item Number Item Name Price Stock Purchase Lashing End Fitting Component
2024495
01148-071-3.5m 		OC01148 1000/50 2pc 3.5m DPS
GBP 39.38
VAT not included
In stock. Available within 3 to 5 Days

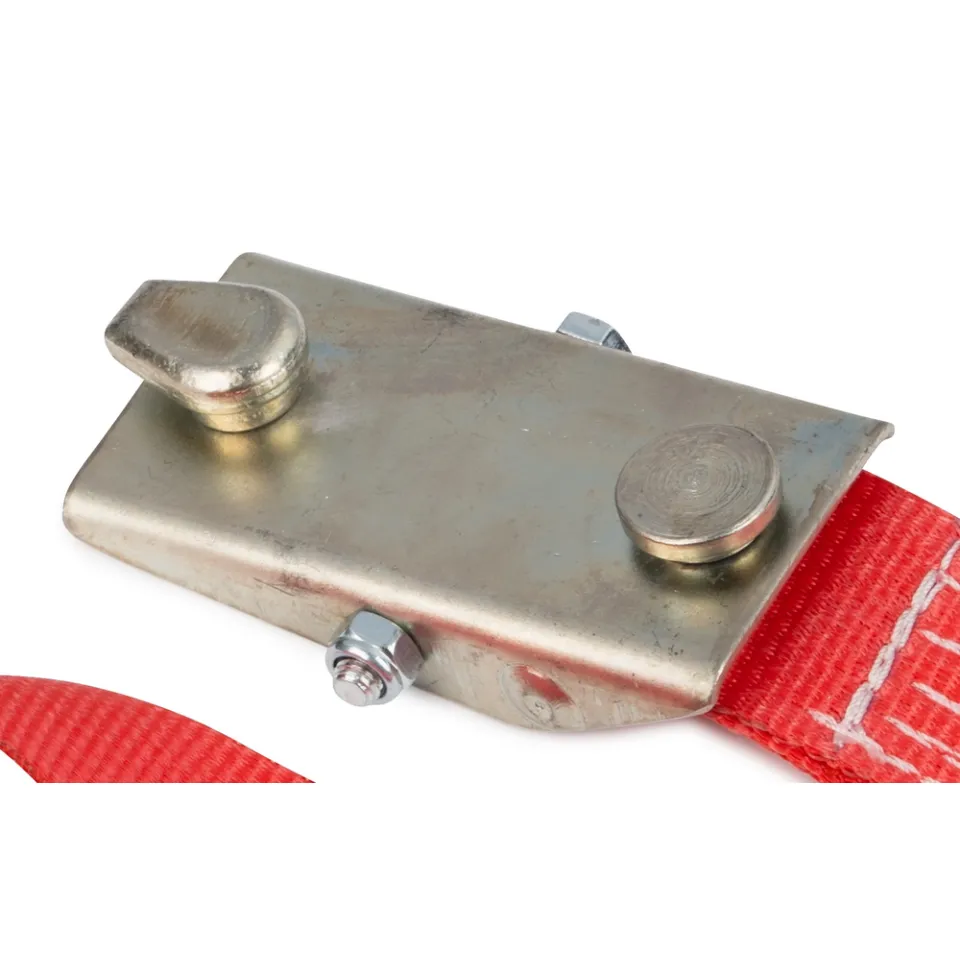

Double Pin Shoes
2024496
RMBVS1148-001 		OC01148 1000/50 2pc 3.5m LPH
GBP 28.35
VAT not included
In stock. Available within 3 to 5 Days

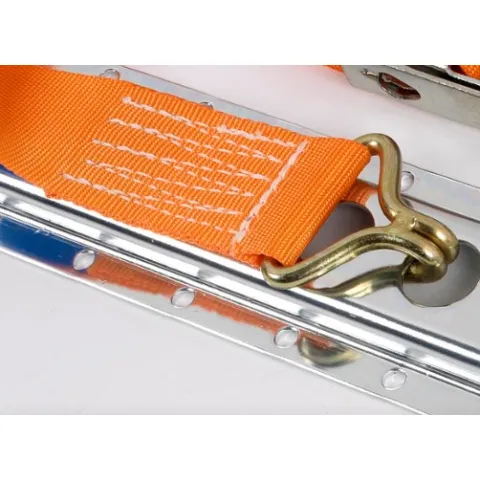

Low Profile Claw Hook
2024497
RMBVS1148-002 		OC01148 1000/50 2pc 3.5m DJH
GBP 25.73
VAT not included
In stock. Available within 3 to 5 Days

Double J-Hook
2024498
RMBVS1148-005 		OC01148 1000/50 2pc 3.5m DS/DJH
GBP 34.13
VAT not included
In stock. Available within 3 to 5 Days

Double Stud Fitting with ring
2024499
RMBVS1148-007 		OC01148 1000/50 2pc 3.5m AP/LPH
GBP 28.05
VAT not included
Call for availability - 01606 737494 Available within 3 to 5 Days

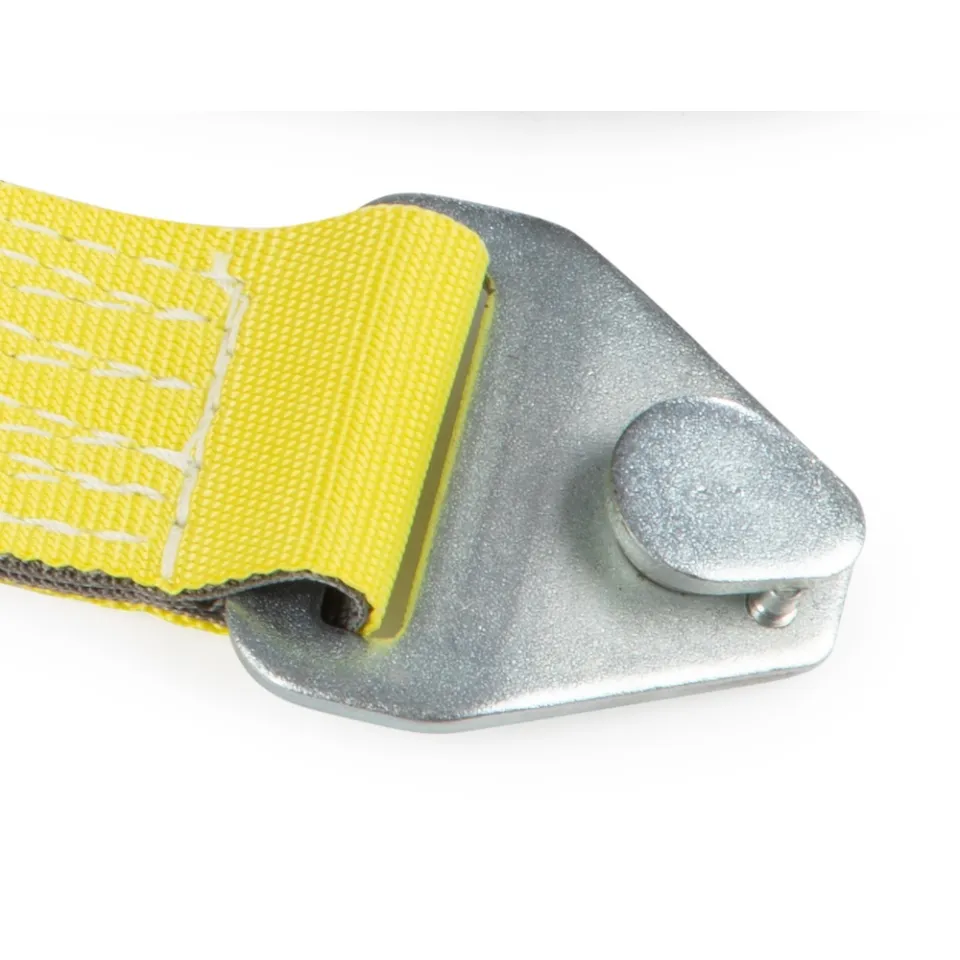

Anchor Plate for TM12 Track

Product downloads and manuals

...
Datasheet
Download
