VarioForce

Lift asymmetrical loads precisely and quickly!

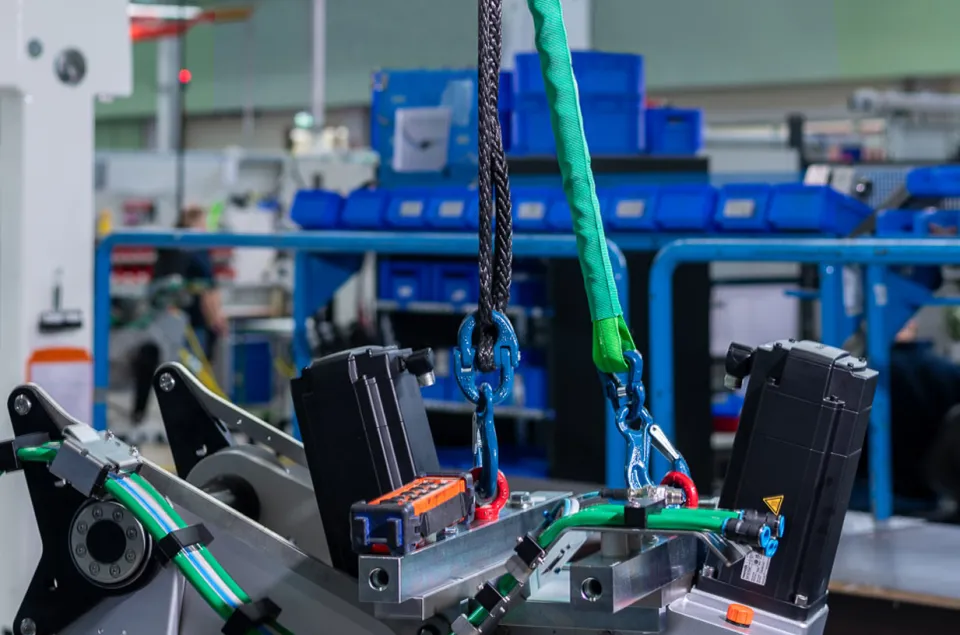

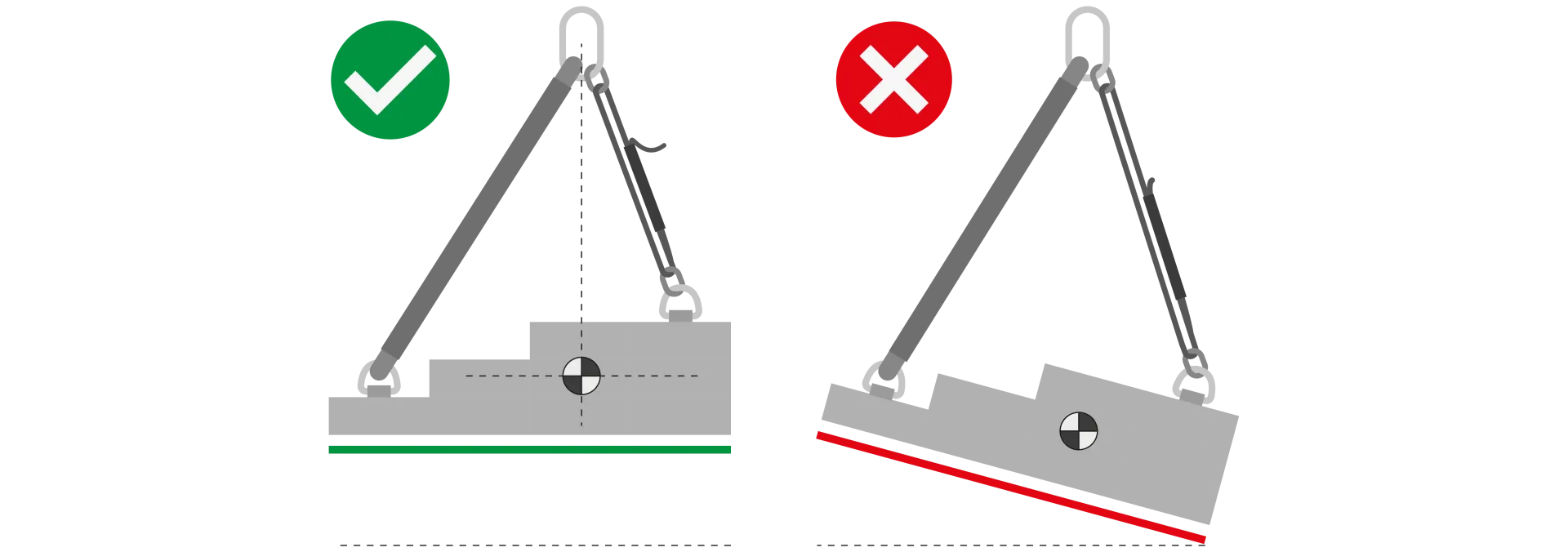

Ideal lifting solution for safe and precise handling of asymmetric loads

Made of high-performance HMPE fibers, the braided rope can be easily combined with round slings to form a 2-, 3-, or 4-leg sling assembly. VarioForce impresses with its simplicity: it can be adjusted in seconds with centimeter precision, ensuring your load is perfectly balanced for a safe and efficient lifting operation.

Integrated adjuster allows for precise, tool-free rope adjustment.


VarioForce stands out for its exceptional ease of use.

The lifting gear is compact, lightweight, and can be effortlessly hooked in place.

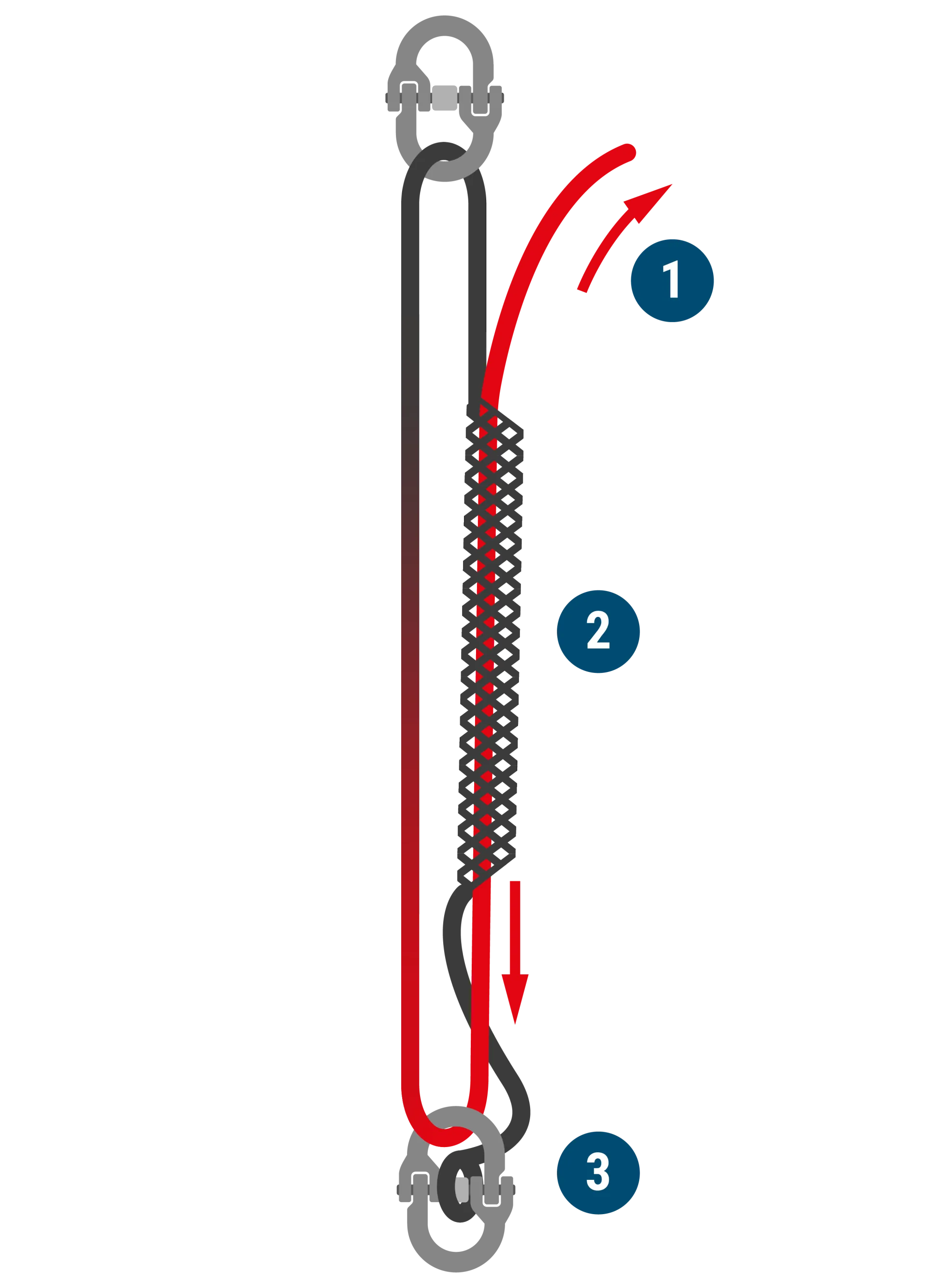

Three Steps to Perfect Balance:

  1. First, the shortener   1   must be unlocked.
  2. Shorten/lengthen the rope: To shorten the VarioForce rope, pull out the free rope end    2   at the top and to lengthen it, pull out the fixed rope    3   end at the bottom until the required length is reached.
  3. Then simply reattach and secure the rope - done!

Extremely robust
and low-stretch

High-performance fibers in combination with SpanSet round slings and Exoset fittings, the result is an innovative sling that makes lifting operations more efficient and economical.

Manufactured in accordance with DIN EN 1492-2/4 and meets the requirements of the Machinery Directive and the strict specifications of the SpanSet factory standard.

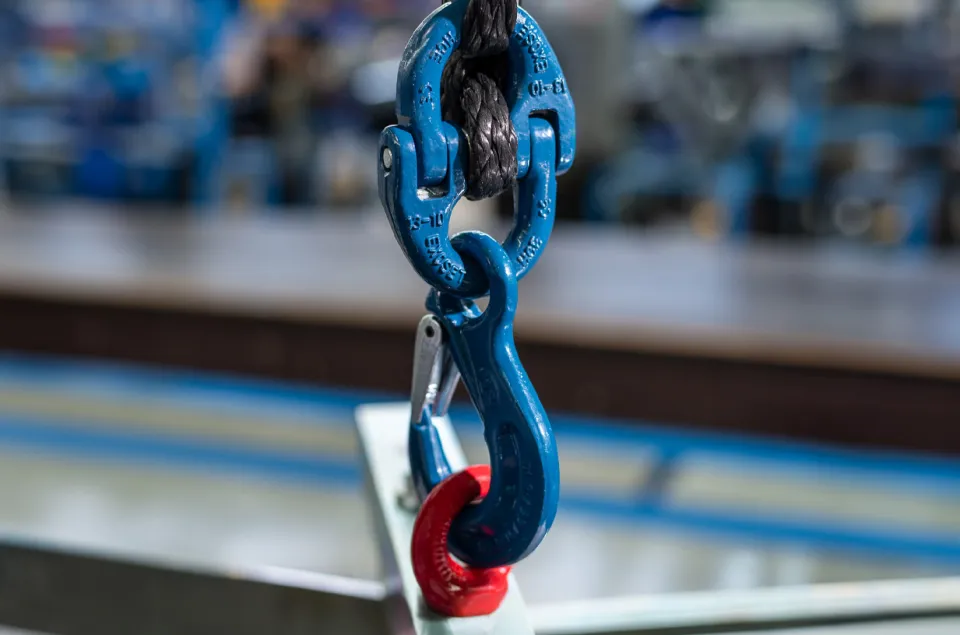

Exoset Grade100
Components

ExoSet fittings are drop-forged from special grade steel in accordance with DIN EN 1677 and their geometries are specially adapted to VarioForce.

They are free of burns and edges, which effectively prevents unnecessary wear and ensures the durability of the fitting.

Perfectly
Labeled

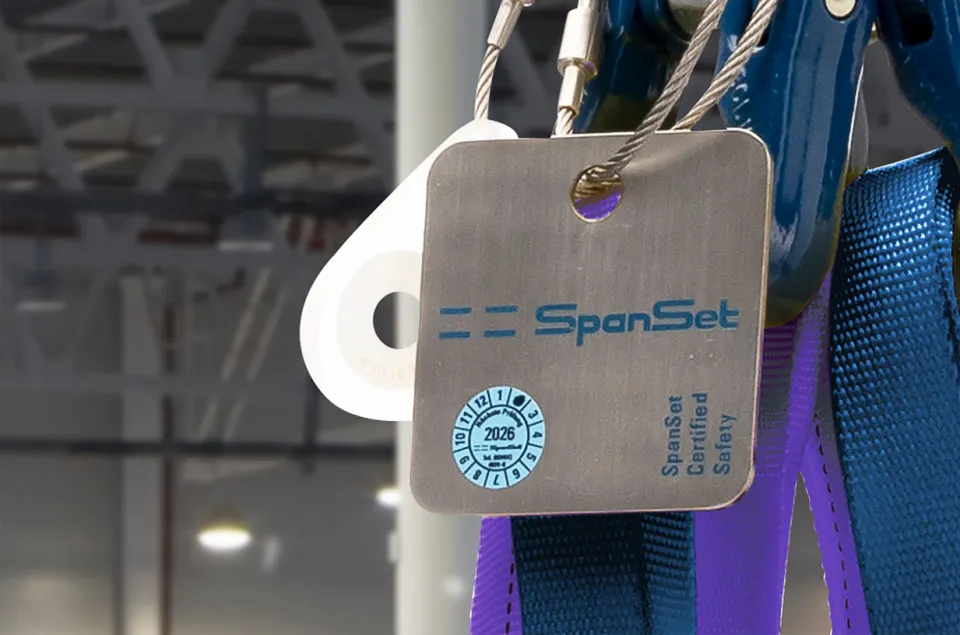

In addition to the load capacity, the plate also contains information on the length and adjustment range of the hanger. Another feature is the indentation for the test seal. This effectively prevents damage.

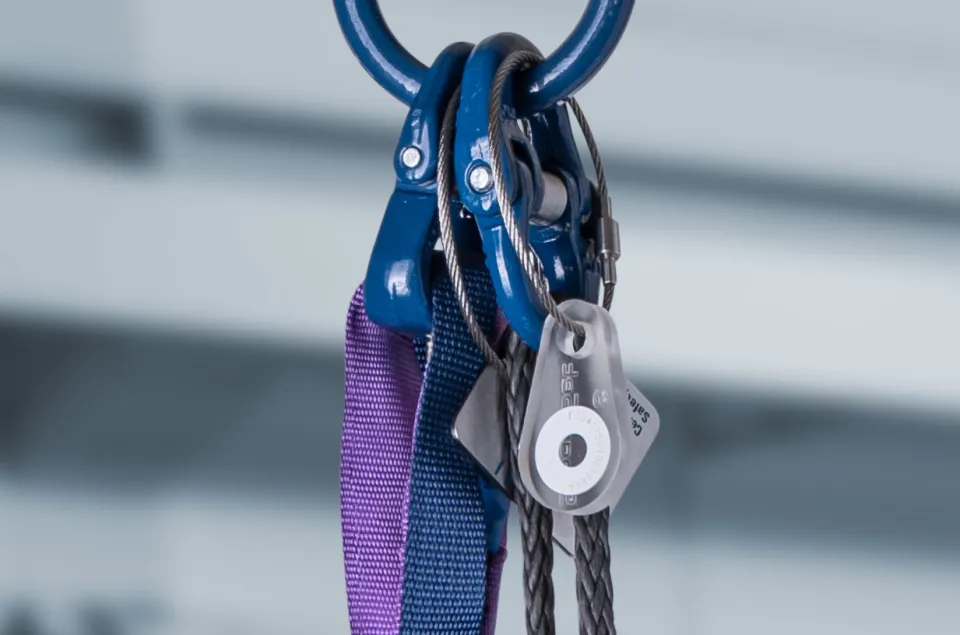

Simple Inspection and Documentation

VarioForce is specially equipped with an RFID tag for sling testing and digital documentation. The ID of the tag is the key to the product history in your database. With IDXpert, SpanSet offers the right software for inspection documentation.

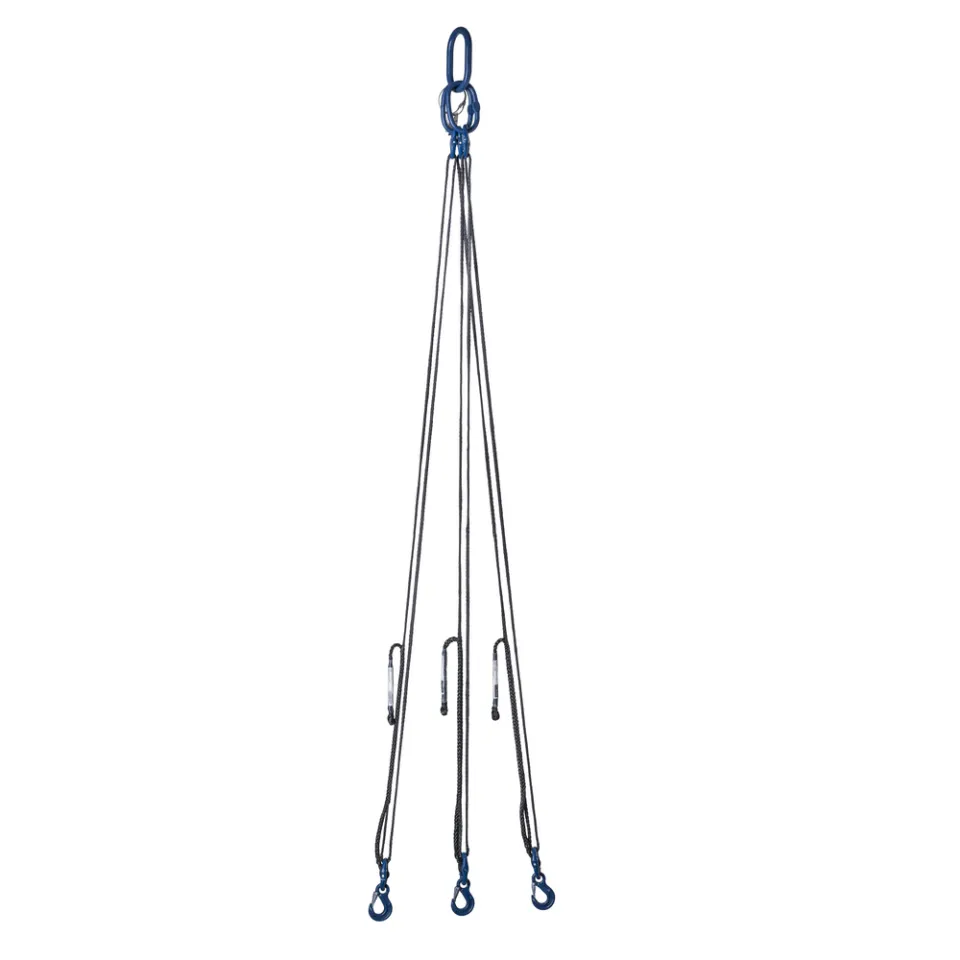

Modular principle
Only use what is necessary!

VarioForce is available in load capacities ranging from 1 to 3 tons and in three different lengths.

The assembly is delivered fully configured. Depending on the load requirements, you can decide how many round slings to use in combination with VarioForce, ensuring you only deploy what is necessary—maximizing cost efficiency.
