E-Series
E-Series
Original SpanSet, Now a Generic Term for Round Slings
Item Number: 2027932
SSAUS ERP Code: E1000-0x0.5
E1000-0x0.5
- Printed with load capacity information.
- Color coded outer cover.
- Woven weight stripes (tons).
- Webbing made of 100% polyester.
- Load bearing fibres protected by the outer sleeve.
- Tuff Tag, webbing reinforced encapsulated compliance labels.
- Safety factor 7:1.
Select Model
Made in Australia
Made, Tested and Certified.

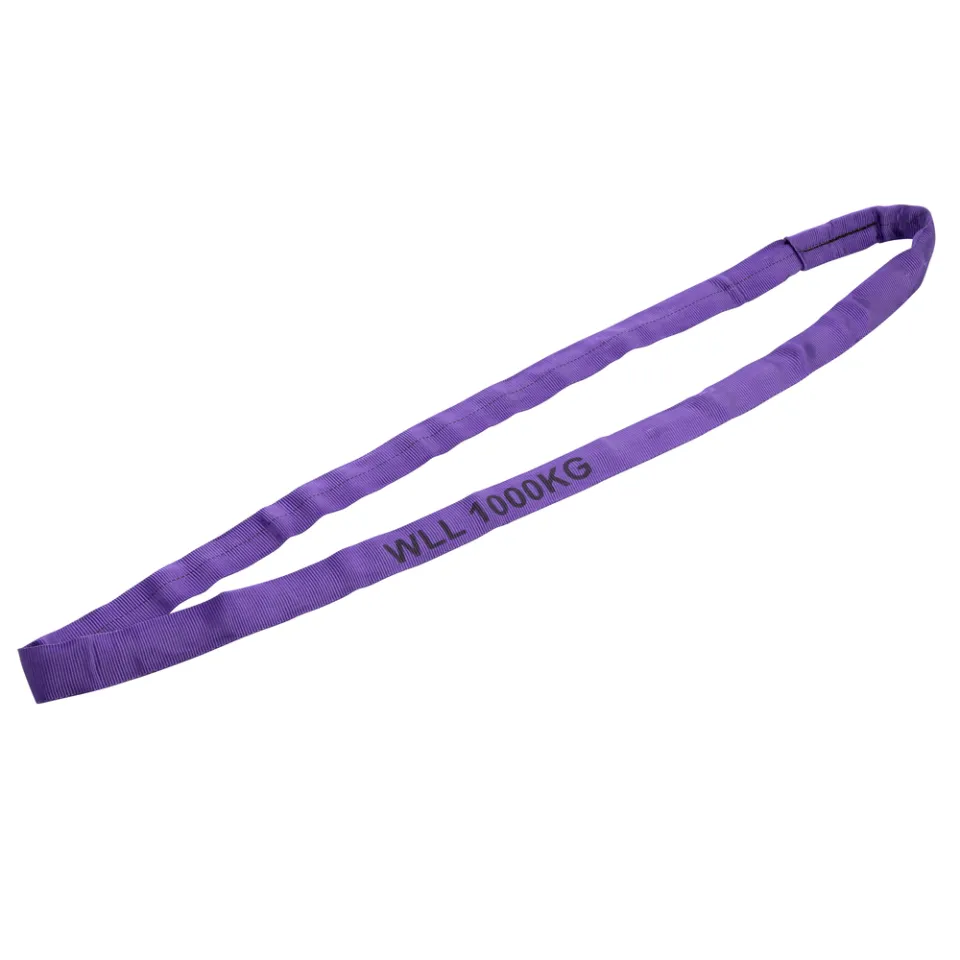

E-Series Round Sling
Australian Made – Australian Tested – Australian Certified
A colour-coded outer cover with woven-in weight stripe markings makes it easier for you to recognise the right lifting gear in daily use.
- Variable load bearing point for more even wear.
- Ideal for choke lifting cylindrical objects.
- Lifts smooth objects without damage.
- Load bearing fibres protected by the outer sleeve.
- Tuff Tag, webbing reinforced encapsulated compliance labels.
- Certified to AS 4497:2018.
- Safety factor 7:1.
For a 10th of a metre, add length to required WLL value e.g. E1000-0x5.5
For over 8.0m lengths, add length to required WLL value e.g. E1000-0x12.0
Product Technical Information
-
Dimension L1 max
60 m -
Safety Factor
7:1 -
Label Protection
No -
Main Material
Polyester -
Standards
AS 4497:2018 -
Packaging Unit (PU)
pcs -
Temperature Range
-40⁰C to 100⁰C -
Packaging Unit (PU) Content
1 -
Private Label
Yes
Product downloads and manuals
Datasheet
Download
Download
Technical Drawings
Variants information
| Item Number | Item Name | WLL kg | Dimension L1 | WLL t | Dimension L1 min | Contact Thickness Under Load | Minimum Load Edge Radius | Weight Net | Weight per Meter | Contact Width Under Load | Colour |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2027932 | E1000-0x0.5 | 1000 kg | 0.5 m | 1 t | 0.5 m | 6 mm | 18 mm | 0.15 kg | 0.3 kg/m | 45 mm | Purple |
| 2027933 | E1000-0x1.0 | 1000 kg | 1 m | 1 t | 0.5 m | 6 mm | 18 mm | 0.3 kg | 0.3 kg/m | 45 mm | Purple |
| 2027934 | E1000-0x1.5 | 1000 kg | 1.5 m | 1 t | 0.5 m | 6 mm | 18 mm | 0.45 kg | 0.3 kg/m | 45 mm | Purple |
| 2027935 | E1000-0x2.0 | 1000 kg | 2 m | 1 t | 0.5 m | 6 mm | 18 mm | 0.6 kg | 0.3 kg/m | 45 mm | Purple |
| 2027936 | E1000-0x2.5 | 1000 kg | 2.5 m | 1 t | 0.5 m | 6 mm | 18 mm | 0.75 kg | 0.3 kg/m | 45 mm | Purple |
| 2028260 | E1000-0x3.0 | 1000 kg | 3 m | 1 t | 0.5 m | 6 mm | 18 mm | 0.9 kg | 0.3 kg/m | 45 mm | Purple |
| 2028713 | E1000-0x4.0 | 1000 kg | 4 m | 1 t | 0.5 m | 6 mm | 18 mm | 1.2 kg | 0.3 kg/m | 45 mm | Purple |
| 2028714 | E1000-0x5.0 | 1000 kg | 5 m | 1 t | 0.5 m | 6 mm | 18 mm | 1.5 kg | 0.3 kg/m | 45 mm | Purple |
| 2028715 | E1000-0x6.0 | 1000 kg | 6 m | 1 t | 0.5 m | 6 mm | 18 mm | 1.8 kg | 0.3 kg/m | 45 mm | Purple |
| 2028716 | E1000-0x7.0 | 1000 kg | 7 m | 1 t | 0.5 m | 6 mm | 18 mm | 2.1 kg | 0.3 kg/m | 45 mm | Purple |
| 2028717 | E1000-0x8.0 | 1000 kg | 8 m | 1 t | 0.5 m | 6 mm | 18 mm | 2.4 kg | 0.3 kg/m | 45 mm | Purple |
| 2027937 | E2000-0x0.5 | 2000 kg | 0.5 m | 2 t | 0.5 m | 7 mm | 21 mm | 0.25 kg | 0.5 kg/m | 48 mm | Green |
| 2027938 | E2000-0x1.0 | 2000 kg | 1 m | 2 t | 0.5 m | 7 mm | 21 mm | 0.5 kg | 0.5 kg/m | 48 mm | Green |
| 2027939 | E2000-0x1.5 | 2000 kg | 1.5 m | 2 t | 0.5 m | 7 mm | 21 mm | 0.75 kg | 0.5 kg/m | 48 mm | Green |
| 2028718 | E2000-0x2.0 | 2000 kg | 2 m | 2 t | 0.5 m | 7 mm | 21 mm | 1 kg | 0.5 kg/m | 48 mm | Green |
| 2028719 | E2000-0x2.5 | 2000 kg | 2.5 m | 2 t | 0.5 m | 7 mm | 21 mm | 1.25 kg | 0.5 kg/m | 48 mm | Green |
| 2028720 | E2000-0x3.0 | 2000 kg | 3 m | 2 t | 0.5 m | 7 mm | 21 mm | 1.5 kg | 0.5 kg/m | 48 mm | Green |
| 2028721 | E2000-0x4.0 | 2000 kg | 4 m | 2 t | 0.5 m | 7 mm | 21 mm | 2 kg | 0.5 kg/m | 48 mm | Green |
| 2028722 | E2000-0x5.0 | 2000 kg | 5 m | 2 t | 0.5 m | 7 mm | 21 mm | 2.5 kg | 0.5 kg/m | 48 mm | Green |
| 2028723 | E2000-0x6.0 | 2000 kg | 6 m | 2 t | 0.5 m | 7 mm | 21 mm | 3 kg | 0.5 kg/m | 48 mm | Green |
| 2029030 | E2000-0x7.0 | 2000 kg | 7 m | 2 t | 0.5 m | 7 mm | 21 mm | 3 kg | 0.5 kg/m | 48 mm | Green |
| 2028724 | E2000-0x8.0 | 2000 kg | 8 m | 2 t | 0.5 m | 7 mm | 21 mm | 4 kg | 0.5 kg/m | 48 mm | Green |
| 2028263 | E3000-0x0.5 | 3000 kg | 0.5 m | 3 t | 0.5 m | 8 mm | 24 mm | 0.4 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028725 | E3000-0x1.0 | 3000 kg | 1 m | 3 t | 0.5 m | 8 mm | 24 mm | 0.8 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028726 | E3000-0x1.5 | 3000 kg | 1.5 m | 3 t | 0.5 m | 8 mm | 24 mm | 1.2 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028727 | E3000-0x2.0 | 3000 kg | 2 m | 3 t | 0.5 m | 8 mm | 24 mm | 1.6 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028728 | E3000-0x2.5 | 3000 kg | 2.5 m | 3 t | 0.5 m | 8 mm | 24 mm | 2 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028729 | E3000-0x3.0 | 3000 kg | 3 m | 3 t | 0.5 m | 8 mm | 24 mm | 2.4 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028730 | E3000-0x4.0 | 3000 kg | 4 m | 3 t | 0.5 m | 8 mm | 24 mm | 3.2 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028731 | E3000-0x5.0 | 3000 kg | 5 m | 3 t | 0.5 m | 8 mm | 24 mm | 4 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028732 | E3000-0x6.0 | 3000 kg | 6 m | 3 t | 0.5 m | 8 mm | 24 mm | 4.8 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028733 | E3000-0x7.0 | 3000 kg | 7 m | 3 t | 0.5 m | 8 mm | 24 mm | 5.6 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028734 | E3000-0x8.0 | 3000 kg | 8 m | 3 t | 0.5 m | 8 mm | 24 mm | 6.4 kg | 0.8 kg/m | 60 mm | Yellow |
| 2028735 | E4000-0x1.0 | 4000 kg | 1 m | 4 t | 1 m | 10 mm | 30 mm | 1 kg | 1 kg/m | 65 mm | Grey |
| 2028736 | E4000-0x1.5 | 4000 kg | 1.5 m | 4 t | 1 m | 10 mm | 30 mm | 1.5 kg | 1 kg/m | 65 mm | Grey |
| 2028737 | E4000-0x2.0 | 4000 kg | 2 m | 4 t | 1 m | 10 mm | 30 mm | 2 kg | 1 kg/m | 65 mm | Grey |
| 2028738 | E4000-0x2.5 | 4000 kg | 2.5 m | 4 t | 1 m | 10 mm | 30 mm | 2.5 kg | 1 kg/m | 65 mm | Grey |
| 2028739 | E4000-0x3.0 | 4000 kg | 3 m | 4 t | 1 m | 10 mm | 30 mm | 3 kg | 1 kg/m | 65 mm | Grey |
| 2028740 | E4000-0x4.0 | 4000 kg | 4 m | 4 t | 1 m | 10 mm | 30 mm | 4 kg | 1 kg/m | 65 mm | Grey |
| 2028741 | E4000-0x5.0 | 4000 kg | 5 m | 4 t | 1 m | 10 mm | 30 mm | 5 kg | 1 kg/m | 65 mm | Grey |
| 2028742 | E4000-0x6.0 | 4000 kg | 6 m | 4 t | 1 m | 10 mm | 30 mm | 6 kg | 1 kg/m | 65 mm | Grey |
| 2028743 | E4000-0x7.0 | 4000 kg | 7 m | 4 t | 1 m | 10 mm | 30 mm | 7 kg | 1 kg/m | 65 mm | Grey |
| 2028744 | E4000-0x8.0 | 4000 kg | 8 m | 4 t | 1 m | 10 mm | 30 mm | 8 kg | 1 kg/m | 65 mm | Grey |
| 2028745 | E5000-0x1.0 | 5000 kg | 1 m | 5 t | 1 m | 10 mm | 30 mm | 1.2 kg | 1.2 kg/m | 75 mm | Red |
| 2028746 | E5000-0x1.5 | 5000 kg | 1.5 m | 5 t | 1 m | 10 mm | 30 mm | 1.8 kg | 1.2 kg/m | 75 mm | Red |
| 2028747 | E5000-0x2.0 | 5000 kg | 2 m | 5 t | 1 m | 10 mm | 30 mm | 2.4 kg | 1.2 kg/m | 75 mm | Red |
| 2028748 | E5000-0x2.5 | 5000 kg | 2.5 m | 5 t | 1 m | 10 mm | 30 mm | 3 kg | 1.2 kg/m | 75 mm | Red |
| 2028749 | E5000-0x3.0 | 5000 kg | 3 m | 5 t | 1 m | 10 mm | 30 mm | 3.6 kg | 1.2 kg/m | 75 mm | Red |
| 2028750 | E5000-0x4.0 | 5000 kg | 4 m | 5 t | 1 m | 10 mm | 30 mm | 4.8 kg | 1.2 kg/m | 75 mm | Red |
| 2028751 | E5000-0x5.0 | 5000 kg | 5 m | 5 t | 1 m | 10 mm | 30 mm | 6 kg | 1.2 kg/m | 75 mm | Red |
| 2028752 | E5000-0x6.0 | 5000 kg | 6 m | 5 t | 1 m | 10 mm | 30 mm | 7.2 kg | 1.2 kg/m | 75 mm | Red |
| 2028753 | E5000-0x7.0 | 5000 kg | 7 m | 5 t | 1 m | 10 mm | 30 mm | 8.4 kg | 1.2 kg/m | 75 mm | Red |
| 2028754 | E5000-0x8.0 | 5000 kg | 8 m | 5 t | 1 m | 10 mm | 30 mm | 9.6 kg | 1.2 kg/m | 75 mm | Red |
| 2028755 | E6000-0x1.0 | 6000 kg | 1 m | 6 t | 1 m | 13 mm | 39 mm | 1.4 kg | 1.4 kg/m | 80 mm | Brown |
| 2028756 | E6000-0x1.5 | 6000 kg | 1.5 m | 6 t | 1 m | 13 mm | 39 mm | 2.1 kg | 1.4 kg/m | 80 mm | Brown |
| 2028757 | E6000-0x2.0 | 6000 kg | 2 m | 6 t | 1 m | 13 mm | 39 mm | 2.8 kg | 1.4 kg/m | 80 mm | Brown |
| 2028758 | E6000-0x2.5 | 6000 kg | 2.5 m | 6 t | 1 m | 13 mm | 39 mm | 3.5 kg | 1.4 kg/m | 80 mm | Brown |
| 2028759 | E6000-0x3.0 | 6000 kg | 3 m | 6 t | 1 m | 13 mm | 39 mm | 4.2 kg | 1.4 kg/m | 80 mm | Brown |
| 2028760 | E6000-0x4.0 | 6000 kg | 4 m | 6 t | 1 m | 13 mm | 39 mm | 5.6 kg | 1.4 kg/m | 80 mm | Brown |
| 2028761 | E6000-0x5.0 | 6000 kg | 5 m | 6 t | 1 m | 13 mm | 39 mm | 7 kg | 1.4 kg/m | 80 mm | Brown |
| 2028762 | E6000-0x6.0 | 6000 kg | 6 m | 6 t | 1 m | 13 mm | 39 mm | 8.4 kg | 1.4 kg/m | 80 mm | Brown |
| 2028763 | E6000-0x7.0 | 6000 kg | 7 m | 6 t | 1 m | 13 mm | 39 mm | 9.8 kg | 1.4 kg/m | 80 mm | Brown |
| 2028764 | E6000-0x8.0 | 6000 kg | 8 m | 6 t | 1 m | 13 mm | 39 mm | 11.2 kg | 1.4 kg/m | 80 mm | Brown |
| 2028765 | E8000-0x1.0 | 8000 kg | 1 m | 8 t | 1 m | 15 mm | 45 mm | 1.8 kg | 1.8 kg/m | 80 mm | Blue |
| 2028766 | E8000-0x1.5 | 8000 kg | 1.5 m | 8 t | 1 m | 15 mm | 45 mm | 2.7 kg | 1.8 kg/m | 80 mm | Blue |
| 2028767 | E8000-0x2.0 | 8000 kg | 2 m | 8 t | 1 m | 15 mm | 45 mm | 3.6 kg | 1.8 kg/m | 80 mm | Blue |
| 2028768 | E8000-0x2.5 | 8000 kg | 2.5 m | 8 t | 1 m | 15 mm | 45 mm | 4.5 kg | 1.8 kg/m | 80 mm | Blue |
| 2028769 | E8000-0x3.0 | 8000 kg | 3 m | 8 t | 1 m | 15 mm | 45 mm | 5.4 kg | 1.8 kg/m | 80 mm | Blue |
| 2028770 | E8000-0x4.0 | 8000 kg | 4 m | 8 t | 1 m | 15 mm | 45 mm | 7.2 kg | 1.8 kg/m | 80 mm | Blue |
| 2028771 | E8000-0x5.0 | 8000 kg | 5 m | 8 t | 1 m | 15 mm | 45 mm | 9 kg | 1.8 kg/m | 80 mm | Blue |
| 2028772 | E8000-0x6.0 | 8000 kg | 6 m | 8 t | 1 m | 15 mm | 45 mm | 10.8 kg | 1.8 kg/m | 80 mm | Blue |
| 2028773 | E8000-0x7.0 | 8000 kg | 7 m | 8 t | 1 m | 15 mm | 45 mm | 12.6 kg | 1.8 kg/m | 80 mm | Blue |
| 2028774 | E8000-0x8.0 | 8000 kg | 8 m | 8 t | 1 m | 15 mm | 45 mm | 14.4 kg | 1.8 kg/m | 80 mm | Blue |
