E-Series Heavy Duty
E-Series Heavy Duty
Original SpanSet, Now a Generic Term for Round Slings
Item Number: 2028775
SSAUS ERP Code: E10000-0x1.0
E10000-0x1.0
- Printed with load capacity information.
- Woven weight stripes (tons).
- Webbing made of 100% polyester.
- Load bearing fibres protected by the outer sleeve.
- Tuff Tag, webbing reinforced encapsulated compliance labels.
- Safety factor 7:1.
Select Model
Made in Australia
Made, Tested and Certified.

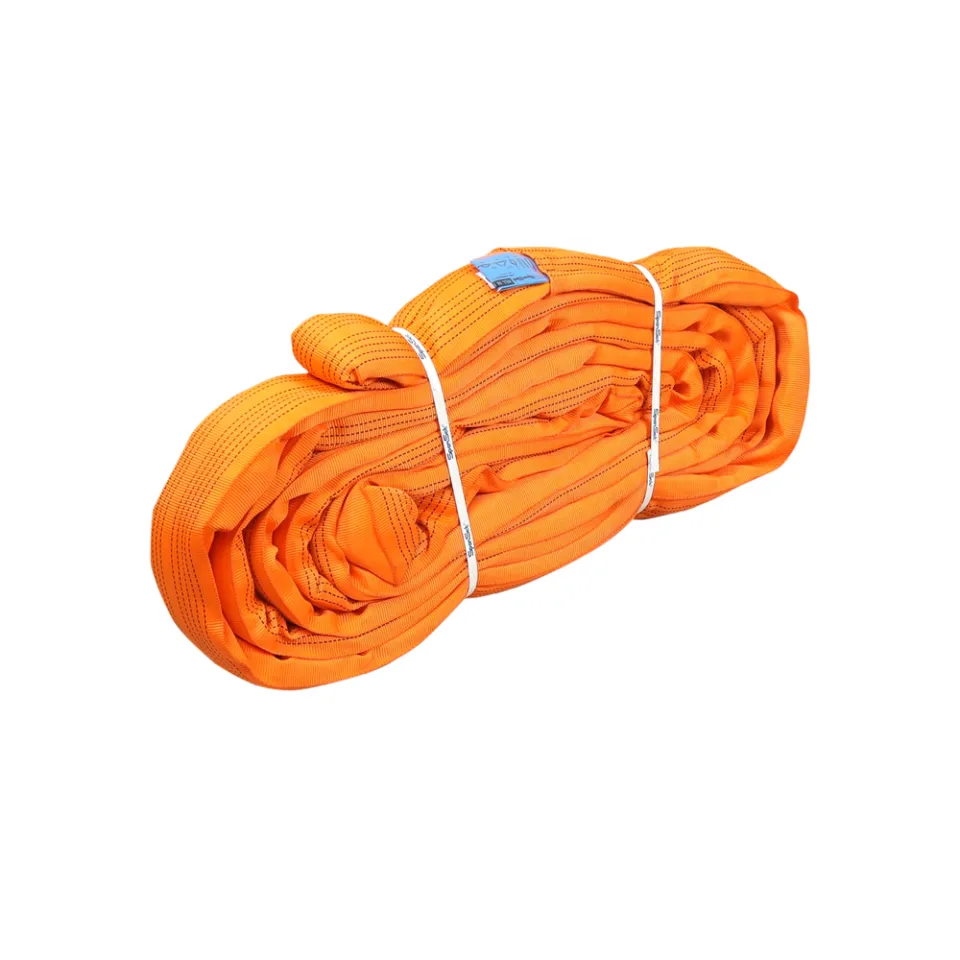

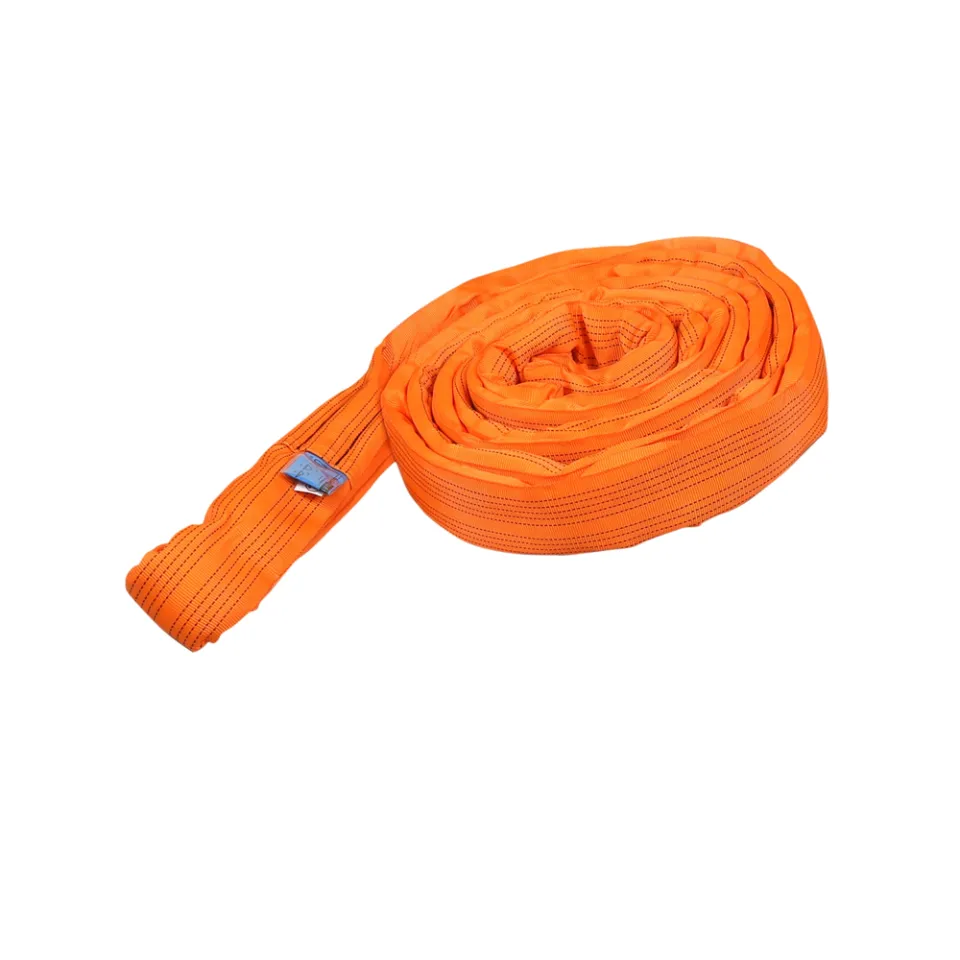

E-Series Heavy Duty Round Slings
Australian Made – Australian Tested – Australian Certified.
- Ideal for choke lifting cylindrical objects.
- Lifts smooth objects without damage.
- Lightweight and soft – reduced manual handling injuries.
- High strength to weight ratio.
- Load bearing fibres protected by the outer sleeve.
- Wide choice of lifting modes.
- Tuff Tag, webbing reinforced encapsulated compliance labels.
- Certified to AS 4497:2018.
- Safety factor 7:1.
For a 10th of a metre, add length to required WLL value e.g. E10000-0x5.5
For over 30m lengths, add length to required WLL value e.g. E10000-0x35
For WLL larger than 80000kg please contact SpanSet to discuss.
Product Technical Information
-
Dimension L1 max
60 m -
Safety Factor
7:1 -
Label Protection
No -
Main Material
Polyester -
Standards
AS 4497:2018 -
Packaging Unit (PU)
pcs -
Temperature Range
-40⁰C to 100⁰C -
Packaging Unit (PU) Content
1 -
Private Label
Yes -
Colour
Orange
Product downloads and manuals
Datasheet
Download
Download
Technical Drawings
Variants information
| Item Number | Item Name | WLL t | Dimension L1 | WLL kg | Dimension L1 min | Contact Thickness Under Load | Minimum Load Edge Radius | Weight Net | Weight per Meter | Contact Width Under Load |
|---|---|---|---|---|---|---|---|---|---|---|
| 2028775 | E10000-0x1.0 | 10 t | 1 m | 10000 kg | 1 m | 19 mm | 57 mm | 2.2 kg | 2.2 kg/m | 90 mm |
| 2028776 | E10000-0x1.5 | 10 t | 1.5 m | 10000 kg | 1 m | 19 mm | 57 mm | 3.3 kg | 2.2 kg/m | 90 mm |
| 2028785 | E10000-0x10.0 | 10 t | 10 m | 10000 kg | 1 m | 19 mm | 57 mm | 22 kg | 2.2 kg/m | 90 mm |
| 2028786 | E10000-0x15 | 10 t | 15 m | 10000 kg | 1 m | 19 mm | 57 mm | 33 kg | 2.2 kg/m | 90 mm |
| 2028777 | E10000-0x2.0 | 10 t | 2 m | 10000 kg | 1 m | 19 mm | 57 mm | 4.4 kg | 2.2 kg/m | 90 mm |
| 2028778 | E10000-0x2.5 | 10 t | 2.5 m | 10000 kg | 1 m | 19 mm | 57 mm | 5.5 kg | 2.2 kg/m | 90 mm |
| 2028787 | E10000-0x20 | 10 t | 20 m | 10000 kg | 1 m | 19 mm | 57 mm | 44 kg | 2.2 kg/m | 90 mm |
| 2028788 | E10000-0x25 | 10 t | 25 m | 10000 kg | 1 m | 19 mm | 57 mm | 55 kg | 2.2 kg/m | 90 mm |
| 2028779 | E10000-0x3.0 | 10 t | 3 m | 10000 kg | 1 m | 19 mm | 57 mm | 6.6 kg | 2.2 kg/m | 90 mm |
| 2028789 | E10000-0x30 | 10 t | 30 m | 10000 kg | 1 m | 19 mm | 57 mm | 66 kg | 2.2 kg/m | 90 mm |
| 2028780 | E10000-0x4.0 | 10 t | 4 m | 10000 kg | 1 m | 19 mm | 57 mm | 8.8 kg | 2.2 kg/m | 90 mm |
| 2028781 | E10000-0x5.0 | 10 t | 5 m | 10000 kg | 1 m | 19 mm | 57 mm | 11 kg | 2.2 kg/m | 90 mm |
| 2028782 | E10000-0x6.0 | 10 t | 6 m | 10000 kg | 1 m | 19 mm | 57 mm | 13.2 kg | 2.2 kg/m | 90 mm |
| 2028783 | E10000-0x7.0 | 10 t | 7 m | 10000 kg | 1 m | 19 mm | 57 mm | 15.4 kg | 2.2 kg/m | 90 mm |
| 2028784 | E10000-0x8.0 | 10 t | 8 m | 10000 kg | 1 m | 19 mm | 57 mm | 17.6 kg | 2.2 kg/m | 90 mm |
| 2028790 | E15000-0x1.0 | 15 t | 1 m | 15000 kg | 1 m | 21 mm | 63 mm | 3.2 kg | 3.2 kg/m | 115 mm |
| 2028791 | E15000-0x1.5 | 15 t | 1.5 m | 15000 kg | 1 m | 21 mm | 63 mm | 4.8 kg | 3.2 kg/m | 115 mm |
| 2028800 | E15000-0x10 | 15 t | 10 m | 15000 kg | 1 m | 21 mm | 63 mm | 32 kg | 3.2 kg/m | 115 mm |
| 2028801 | E15000-0x15 | 15 t | 15 m | 15000 kg | 1 m | 21 mm | 63 mm | 48 kg | 3.2 kg/m | 115 mm |
| 2028792 | E15000-0x2.0 | 15 t | 2 m | 15000 kg | 1 m | 21 mm | 63 mm | 6.4 kg | 3.2 kg/m | 115 mm |
| 2028793 | E15000-0x2.5 | 15 t | 2.5 m | 15000 kg | 1 m | 21 mm | 63 mm | 8 kg | 3.2 kg/m | 115 mm |
| 2028802 | E15000-0x20 | 15 t | 20 m | 15000 kg | 1 m | 21 mm | 63 mm | 64 kg | 3.2 kg/m | 115 mm |
| 2028803 | E15000-0x25 | 15 t | 25 m | 15000 kg | 1 m | 21 mm | 63 mm | 80 kg | 3.2 kg/m | 115 mm |
| 2028794 | E15000-0x3.0 | 15 t | 3 m | 15000 kg | 1 m | 21 mm | 63 mm | 9.6 kg | 3.2 kg/m | 115 mm |
| 2028804 | E15000-0x30 | 15 t | 30 m | 15000 kg | 1 m | 21 mm | 63 mm | 96 kg | 3.2 kg/m | 115 mm |
| 2028795 | E15000-0x4.0 | 15 t | 4 m | 15000 kg | 1 m | 21 mm | 63 mm | 12.8 kg | 3.2 kg/m | 115 mm |
| 2028796 | E15000-0x5.0 | 15 t | 5 m | 15000 kg | 1 m | 21 mm | 63 mm | 16 kg | 3.2 kg/m | 115 mm |
| 2028797 | E15000-0x6.0 | 15 t | 6 m | 15000 kg | 1 m | 21 mm | 63 mm | 19.2 kg | 3.2 kg/m | 115 mm |
| 2028798 | E15000-0x7.0 | 15 t | 7 m | 15000 kg | 1 m | 21 mm | 63 mm | 22.4 kg | 3.2 kg/m | 115 mm |
| 2028799 | E15000-0x8.0 | 15 t | 8 m | 15000 kg | 1 m | 21 mm | 63 mm | 25.6 kg | 3.2 kg/m | 115 mm |
| 2028805 | E20000-0x1.0 | 20 t | 1 m | 20000 kg | 1 m | 23 mm | 69 mm | 4.4 kg | 4.4 kg/m | 135 mm |
| 2028806 | E20000-0x1.5 | 20 t | 1.5 m | 20000 kg | 1 m | 23 mm | 69 mm | 6.6 kg | 4.4 kg/m | 135 mm |
| 2028815 | E20000-0x10 | 20 t | 10 m | 20000 kg | 1 m | 23 mm | 69 mm | 44 kg | 4.4 kg/m | 135 mm |
| 2028816 | E20000-0x15 | 20 t | 15 m | 20000 kg | 1 m | 23 mm | 69 mm | 66 kg | 4.4 kg/m | 135 mm |
| 2028807 | E20000-0x2.0 | 20 t | 2 m | 20000 kg | 1 m | 23 mm | 69 mm | 8.8 kg | 4.4 kg/m | 135 mm |
| 2028808 | E20000-0x2.5 | 20 t | 2.5 m | 20000 kg | 1 m | 23 mm | 69 mm | 11 kg | 4.4 kg/m | 135 mm |
| 2028817 | E20000-0x20 | 20 t | 20 m | 20000 kg | 1 m | 23 mm | 69 mm | 88 kg | 4.4 kg/m | 135 mm |
| 2028818 | E20000-0x25.0 | 20 t | 25 m | 20000 kg | 1 m | 23 mm | 69 mm | 110 kg | 4.4 kg/m | 135 mm |
| 2028809 | E20000-0x3.0 | 20 t | 3 m | 20000 kg | 1 m | 23 mm | 69 mm | 13.2 kg | 4.4 kg/m | 135 mm |
| 2028819 | E20000-0x30 | 20 t | 30 m | 20000 kg | 1 m | 23 mm | 69 mm | 132 kg | 4.4 kg/m | 135 mm |
| 2028810 | E20000-0x4.0 | 20 t | 4 m | 20000 kg | 1 m | 23 mm | 69 mm | 17.6 kg | 4.4 kg/m | 135 mm |
| 2028811 | E20000-0x5.0 | 20 t | 5 m | 20000 kg | 1 m | 23 mm | 69 mm | 22 kg | 4.4 kg/m | 135 mm |
| 2028812 | E20000-0x6.0 | 20 t | 6 m | 20000 kg | 1 m | 23 mm | 69 mm | 26.4 kg | 4.4 kg/m | 135 mm |
| 2028813 | E20000-0x7.0 | 20 t | 7 m | 20000 kg | 1 m | 23 mm | 69 mm | 30.08 kg | 4.4 kg/m | 135 mm |
| 2028814 | E20000-0x8.0 | 20 t | 8 m | 20000 kg | 1 m | 23 mm | 69 mm | 35.2 kg | 4.4 kg/m | 135 mm |
| 2028821 | E25000-0x1.0 | 25 t | 1 m | 25000 kg | 1 m | 24 mm | 72 mm | 5.6 kg | 5.6 kg/m | 150 mm |
| 2028822 | E25000-0x1.5 | 25 t | 1.5 m | 25000 kg | 1 m | 24 mm | 72 mm | 8.4 kg | 5.6 kg/m | 150 mm |
| 2028831 | E25000-0x10 | 25 t | 10 m | 25000 kg | 1 m | 24 mm | 72 mm | 56 kg | 5.6 kg/m | 150 mm |
| 2028832 | E25000-0x15 | 25 t | 15 m | 25000 kg | 1 m | 24 mm | 72 mm | 84 kg | 5.6 kg/m | 150 mm |
| 2028823 | E25000-0x2.0 | 25 t | 2 m | 25000 kg | 1 m | 24 mm | 72 mm | 11.2 kg | 5.6 kg/m | 150 mm |
| 2028824 | E25000-0x2.5 | 25 t | 2.5 m | 25000 kg | 1 m | 24 mm | 72 mm | 14 kg | 5.6 kg/m | 150 mm |
| 2028833 | E25000-0x20 | 25 t | 20 m | 25000 kg | 1 m | 24 mm | 72 mm | 112 kg | 5.6 kg/m | 150 mm |
| 2028825 | E25000-0x3.0 | 25 t | 3 m | 25000 kg | 1 m | 24 mm | 72 mm | 16.8 kg | 5.6 kg/m | 150 mm |
| 2028826 | E25000-0x4.0 | 25 t | 4 m | 25000 kg | 1 m | 24 mm | 72 mm | 22.4 kg | 5.6 kg/m | 150 mm |
| 2028827 | E25000-0x5.0 | 25 t | 5 m | 25000 kg | 1 m | 24 mm | 72 mm | 28 kg | 5.6 kg/m | 150 mm |
| 2028828 | E25000-0x6.0 | 25 t | 6 m | 25000 kg | 1 m | 24 mm | 72 mm | 33.6 kg | 5.6 kg/m | 150 mm |
| 2028829 | E25000-0x7.0 | 25 t | 7 m | 25000 kg | 1 m | 24 mm | 72 mm | 39.2 kg | 5.6 kg/m | 150 mm |
| 2028830 | E25000-0x8.0 | 25 t | 8 m | 25000 kg | 1 m | 24 mm | 72 mm | 44.8 kg | 5.6 kg/m | 150 mm |
| 2028834 | E30000-0x1.5 | 30 t | 1.5 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 11.1 kg | 7.4 kg/m | 170 mm |
| 2028843 | E30000-0x10 | 30 t | 10 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 74 kg | 7.4 kg/m | 170 mm |
| 2028844 | E30000-0x15 | 30 t | 15 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 111 kg | 7.4 kg/m | 170 mm |
| 2028835 | E30000-0x2.0 | 30 t | 2 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 14.8 kg | 7.4 kg/m | 170 mm |
| 2028836 | E30000-0x2.5 | 30 t | 2.5 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 18.5 kg | 7.4 kg/m | 170 mm |
| 2028845 | E30000-0x20 | 30 t | 20 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 148 kg | 7.4 kg/m | 170 mm |
| 2028846 | E30000-0x24 | 30 t | 24 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 177.6 kg | 7.4 kg/m | 170 mm |
| 2028837 | E30000-0x3.0 | 30 t | 3 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 22.2 kg | 7.4 kg/m | 170 mm |
| 2028838 | E30000-0x4.0 | 30 t | 4 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 29.6 kg | 7.4 kg/m | 170 mm |
| 2028839 | E30000-0x5.0 | 30 t | 5 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 37 kg | 7.4 kg/m | 170 mm |
| 2028840 | E30000-0x6.0 | 30 t | 6 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 44.4 kg | 7.4 kg/m | 170 mm |
| 2028841 | E30000-0x7.0 | 30 t | 7 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 51.8 kg | 7.4 kg/m | 170 mm |
| 2028842 | E30000-0x8.0 | 30 t | 8 m | 30000 kg | 1.4 m | 27 mm | 81 mm | 59.2 kg | 7.4 kg/m | 170 mm |
| 2028847 | E35000-0x1.5 | 35 t | 1.5 m | 35000 kg | 1.5 m | |||||
| 2028854 | E35000-0x10 | 35 t | 10 m | 35000 kg | 1.5 m | |||||
| 2028855 | E35000-0x15 | 35 t | 15 m | 35000 kg | 1.5 m | |||||
| 2028848 | E35000-0x2.0 | 35 t | 2 m | 35000 kg | 1.5 m | |||||
| 2028856 | E35000-0x20 | 35 t | 20 m | 35000 kg | 1.5 m | |||||
| 2028849 | E35000-0x3.0 | 35 t | 3 m | 35000 kg | 1.5 m | |||||
| 2028857 | E35000-0x30 | 35 t | 30 m | 35000 kg | 1.5 m | |||||
| 2028850 | E35000-0x4.0 | 35 t | 4 m | 35000 kg | 1.5 m | |||||
| 2028851 | E35000-0x5.0 | 35 t | 5 m | 35000 kg | 1.5 m | |||||
| 2028852 | E35000-0x6.0 | 35 t | 6 m | 35000 kg | 1.5 m | |||||
| 2028853 | E35000-0x8.0 | 35 t | 8 m | 35000 kg | 1.5 m | |||||
| 2028858 | E40000-0x1.5 | 40 t | 1.5 m | 40000 kg | 1.5 m | 37 mm | 111 mm | 15 kg | 10 kg/m | 190 mm |
| 2028859 | E40000-0x2.0 | 40 t | 2 m | 40000 kg | 1.5 m | 37 mm | 111 mm | 20 kg | 10 kg/m | 190 mm |
| 2028860 | E40000-0x2.5 | 40 t | 2.5 m | 40000 kg | 1.5 m | 37 mm | 111 mm | 25 kg | 10 kg/m | 190 mm |
| 2028861 | E40000-0x3.0 | 40 t | 3 m | 40000 kg | 1.5 m | 37 mm | 111 mm | 30 kg | 10 kg/m | 190 mm |
| 2028862 | E40000-0x4.0 | 40 t | 4 m | 40000 kg | 1.5 m | 37 mm | 111 mm | 40 kg | 10 kg/m | 190 mm |
| 2028881 | E45000-0x15 | 45 t | 15 m | 45000 kg | 2 m | |||||
| 2028874 | E45000-0x2.0 | 45 t | 2 m | 45000 kg | 2 m | |||||
| 2028875 | E45000-0x2.5 | 45 t | 2.5 m | 45000 kg | 2 m | |||||
| 2028876 | E45000-0x3.0 | 45 t | 3 m | 45000 kg | 2 m | |||||
| 2028877 | E45000-0x4.0 | 45 t | 4 m | 45000 kg | 2 m | |||||
| 2028878 | E45000-0x5.0 | 45 t | 5 m | 45000 kg | 2 m | |||||
| 2028879 | E45000-0x6.0 | 45 t | 6 m | 45000 kg | 2 m | |||||
| 2028880 | E45000-0x7.0 | 45 t | 7 m | 45000 kg | 2 m | |||||
| 2028890 | E50000-0x10 | 50 t | 10 m | 50000 kg | 2 m | 65 mm | 195 mm | 130 kg | 13 kg/m | 190 mm |
| 2028891 | E50000-0x15 | 50 t | 15 m | 50000 kg | 2 m | 65 mm | 195 mm | 195 kg | 13 kg/m | 190 mm |
| 2028882 | E50000-0x2.0 | 50 t | 2 m | 50000 kg | 2 m | 65 mm | 195 mm | 26 kg | 13 kg/m | 190 mm |
| 2028883 | E50000-0x2.5 | 50 t | 2.5 m | 50000 kg | 2 m | 65 mm | 195 mm | 32.5 kg | 13 kg/m | 190 mm |
| 2028892 | E50000-0x20 | 50 t | 20 m | 50000 kg | 2 m | 65 mm | 195 mm | 260 kg | 13 kg/m | 190 mm |
| 2028893 | E50000-0x25 | 50 t | 25 m | 50000 kg | 2 m | 65 mm | 195 mm | 325 kg | 13 kg/m | 190 mm |
| 2028884 | E50000-0x3.0 | 50 t | 3 m | 50000 kg | 2 m | 65 mm | 195 mm | 39 kg | 13 kg/m | 190 mm |
| 2028885 | E50000-0x4.0 | 50 t | 4 m | 50000 kg | 2 m | 65 mm | 195 mm | 52 kg | 13 kg/m | 190 mm |
| 2028886 | E50000-0x5.0 | 50 t | 5 m | 50000 kg | 2 m | 65 mm | 195 mm | 65 kg | 13 kg/m | 190 mm |
| 2028887 | E50000-0x6.0 | 50 t | 6 m | 50000 kg | 2 m | 65 mm | 195 mm | 78 kg | 13 kg/m | 190 mm |
| 2028888 | E50000-0x7.0 | 50 t | 7 m | 50000 kg | 2 m | 65 mm | 195 mm | 91 kg | 13 kg/m | 190 mm |
| 2028889 | E50000-0x8.0 | 50 t | 8 m | 50000 kg | 2 m | 65 mm | 195 mm | 104 kg | 13 kg/m | 190 mm |
| 2028894 | E60000-0x1.5 | 60 t | 1.5 m | 60000 kg | 2 m | 75 mm | 225 mm | 22.2 kg | 14.8 kg/m | 220 mm |
| 2028903 | E60000-0x10 | 60 t | 10 m | 60000 kg | 2 m | 75 mm | 225 mm | 148 kg | 14.8 kg/m | 220 mm |
| 2028904 | E60000-0x15 | 60 t | 15 m | 60000 kg | 2 m | 75 mm | 225 mm | 222 kg | 14.8 kg/m | 220 mm |
| 2028895 | E60000-0x2.0 | 60 t | 2 m | 60000 kg | 2 m | 75 mm | 225 mm | 29.6 kg | 14.8 kg/m | 220 mm |
| 2028896 | E60000-0x2.5 | 60 t | 2.5 m | 60000 kg | 2 m | 75 mm | 225 mm | 37 kg | 14.8 kg/m | 220 mm |
| 2028905 | E60000-0x20 | 60 t | 20 m | 60000 kg | 2 m | 75 mm | 225 mm | 296 kg | 14.8 kg/m | 220 mm |
| 2028897 | E60000-0x3.0 | 60 t | 3 m | 60000 kg | 2 m | 75 mm | 225 mm | 44.4 kg | 14.8 kg/m | 220 mm |
| 2028898 | E60000-0x4.0 | 60 t | 4 m | 60000 kg | 2 m | 75 mm | 225 mm | 59.2 kg | 14.8 kg/m | 220 mm |
| 2028899 | E60000-0x5.0 | 60 t | 5 m | 60000 kg | 2 m | 75 mm | 225 mm | 74 kg | 14.8 kg/m | 220 mm |
| 2028900 | E60000-0x6.0 | 60 t | 6 m | 60000 kg | 2 m | 75 mm | 225 mm | 88.8 kg | 14.8 kg/m | 220 mm |
| 2028901 | E60000-0x7.0 | 60 t | 7 m | 60000 kg | 2 m | 75 mm | 225 mm | 103.6 kg | 14.8 kg/m | 220 mm |
| 2028902 | E60000-0x8.0 | 60 t | 8 m | 60000 kg | 2 m | 75 mm | 225 mm | 118.4 kg | 14.8 kg/m | 220 mm |
| 2028911 | E70000-0x10 | 70 t | 10 m | 70000 kg | 3 m | |||||
| 2028912 | E70000-0x20 | 70 t | 20 m | 70000 kg | 3 m | |||||
| 2028913 | E70000-0x25 | 70 t | 25 m | 70000 kg | 3 m | |||||
| 2028906 | E70000-0x4.0 | 70 t | 4 m | 70000 kg | 3 m | |||||
| 2028907 | E70000-0x5.0 | 70 t | 5 m | 70000 kg | 3 m | |||||
| 2028908 | E70000-0x6.0 | 70 t | 6 m | 70000 kg | 3 m | |||||
| 2028909 | E70000-0x7.0 | 70 t | 7 m | 70000 kg | 3 m | |||||
| 2028910 | E70000-0x8.0 | 70 t | 8 m | 70000 kg | 3 m | |||||
| 2028920 | E80000-0x10 | 80 t | 10 m | 80000 kg | 3 m | 86 mm | 258 mm | 200 kg | 20 kg/m | 230 mm |
| 2028914 | E80000-0x3.0 | 80 t | 3 m | 80000 kg | 3 m | 86 mm | 258 mm | 60 kg | 20 kg/m | 230 mm |
| 2028921 | E80000-0x30 | 80 t | 30 m | 80000 kg | 3 m | 86 mm | 258 mm | 600 kg | 20 kg/m | 230 mm |
| 2028915 | E80000-0x4.0 | 80 t | 4 m | 80000 kg | 3 m | 86 mm | 258 mm | 80 kg | 20 kg/m | 230 mm |
| 2028916 | E80000-0x5.0 | 80 t | 5 m | 80000 kg | 3 m | 86 mm | 258 mm | 100 kg | 20 kg/m | 230 mm |
| 2028917 | E80000-0x6.0 | 80 t | 6 m | 80000 kg | 3 m | 86 mm | 258 mm | 120 kg | 20 kg/m | 230 mm |
| 2028918 | E80000-0x7.0 | 80 t | 7 m | 80000 kg | 3 m | 86 mm | 258 mm | 140 kg | 20 kg/m | 230 mm |
| 2028919 | E80000-0x8.0 | 80 t | 8 m | 80000 kg | 3 m | 86 mm | 258 mm | 160 kg | 20 kg/m | 230 mm |
