ERGO iLite

ERGO iLite

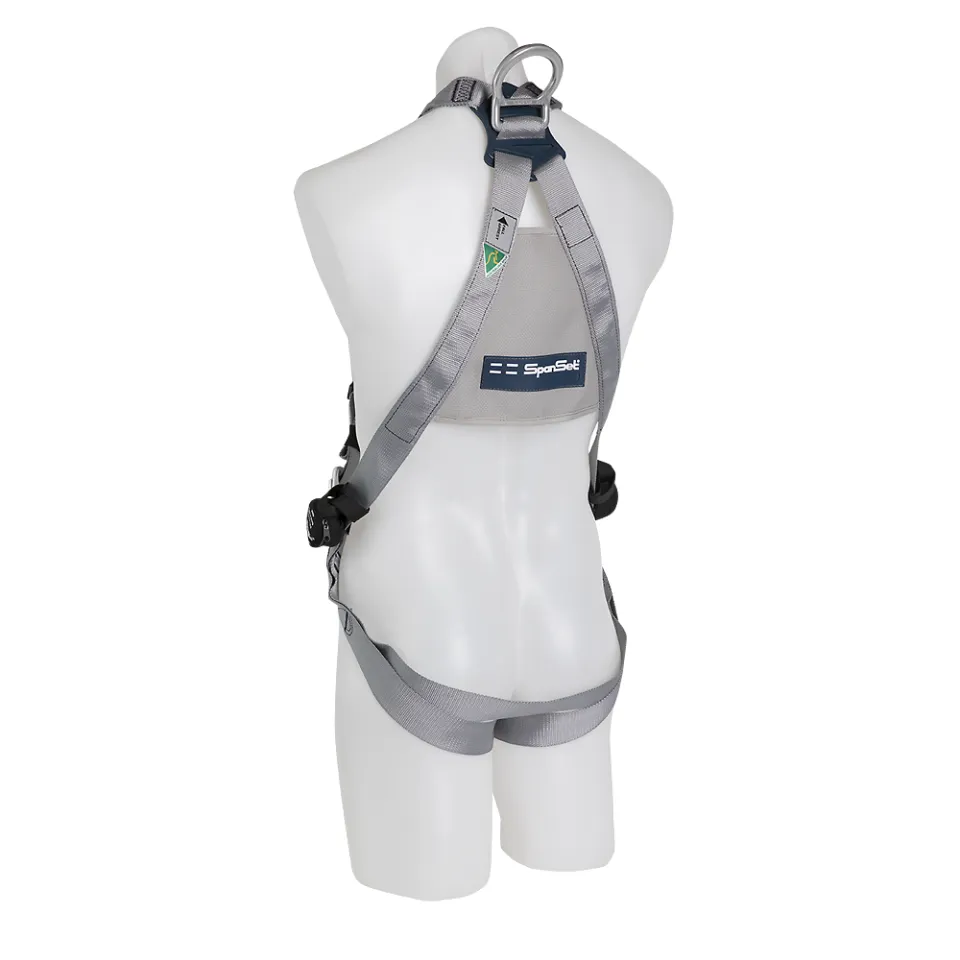

Full body fall arrest harness with front fall arrest D and rear fall arrest D

Item Number: 2029044
SSAUS ERP Code: 1100-ERGOILITE-S
1100-ERGOILITE-S
  • Front and rear fall arrest D.
  • iWeb™ Inspection ready webbing with water and oil resistant Xtreme Guard.
  • Lightweight aluminium fittings and quick connect buckles.
  • Fully adjustable shoulder, chest and leg straps.
  • Suitable for fall arrest, roof work, ladder systems, EWP, maintenance and construction.
  • Confined space entry loops and suspension trauma relief straps.
  • Breathable mesh panel at rear.

Select Model

...

Xtreme Guard Webbing

Abrasion, Water and Oil Resistant

Webbing is treated to offer abrasion, water and oil resistance

...

Quick Connect Buckles

Make the harnesses even faster and easier to put on

To ensure your safety, a green dot becomes visable when the buckle is closed correctly. The lock system does not allow for unwanted opening.

...

Label Protection

Compliance label with details secured in protection pouch.

...

Individual Serial Number

Clear and standard-compliant labelling with traceability code

...

Corrosion Resistance

Aluminium

Connectors and fittings are made of aluminium and offer high corrosion resistance and easy adjustment.

The SpanSet ERGO iLite range is our lightweight harness range for all day working applications.

Lightweight design allows for continual all day working activities.

The harness is a fully adjustable and easy to fit for fall arrest applications and comes with aluminium fittings, aluminium quick connect buckles and suspension trauma relief straps.

ERGO iLite harness range uses SpanSet patented iWeb™ inspection ready webbing. To inspect your harness with iWeb™ simply look for visible red yarn that clearly marks cuts and abrasions. If the inner red core is visible upon inspection, then the harness must be removed from service.

Product Technical Information

  • Maximum User Weight
    150 kg
  • Hardware Material
    Aluminium
  • Harness Webbing Material
    iWeb™ High Tensile Polyester
  • Positioning Belt
    No
  • Sternal Anchorage
    Yes
  • Dorsal Anchorage
    Yes
  • Fixed Energy absorber
    No
  • Ventral Anchorage
    No
  • Dorsal Extension
    No
  • Padded Shoulders
    No
  • Padded Leg straps
    No
  • Tool Attachments
    No
  • Relief Straps included
    Yes
  • Packaging Type
    Drawstring bag
  • Label Protection
    Yes
  • Standards
    AS/NZS 1891.1:2020
  • Packaging Unit (PU)
    pcs
  • Inspection Guide
    Yes
  • Packaging Unit (PU) Content
    1
  • Individually Serial Numbered
    Yes
  • Individual Certificate
    Yes
  • Private Label
    Yes
