Magnum Plus
Round Sling 10t-150t
Thicker sleeve giving increased durability and up to 4 times longer service
Magnum Plus
Round Sling 10t-150t
Thicker sleeve giving increased durability and up to 4 times longer service
- Heavy duty sleeve with WLL data woven into sleeve.
- Thicker sleeve means better protection of internal fibres.
- Raised ribs on sleeve improves gliding characteristics when choking and inproves cut and abrasion resistance.
- Ideal for choke lifting cylindrical objects.
- High strength to weight ratio.
- Load bearing fibres protected by the outer sleeve.
- Certified to AS 4497:2018.
Select Model
MagnumPlus 10t 1.5m
Item Number: 2028506
| SSAUS ERP Code: MP10000-0x1.5
Price under request
- Heavy duty sleeve with WLL data woven into sleeve.
- Thicker sleeve means better protection of internal fibres.
- Raised ribs on sleeve improves gliding characteristics when choking and inproves cut and abrasion resistance.
- Ideal for choke lifting cylindrical objects.
- High strength to weight ratio.
- Load bearing fibres protected by the outer sleeve.
- Certified to AS 4497:2018.
Price under request
Select Model
MagnumPlus 10t 1.5m
Item Number: 2028506
| SSAUS ERP Code: MP10000-0x1.5
Price under request

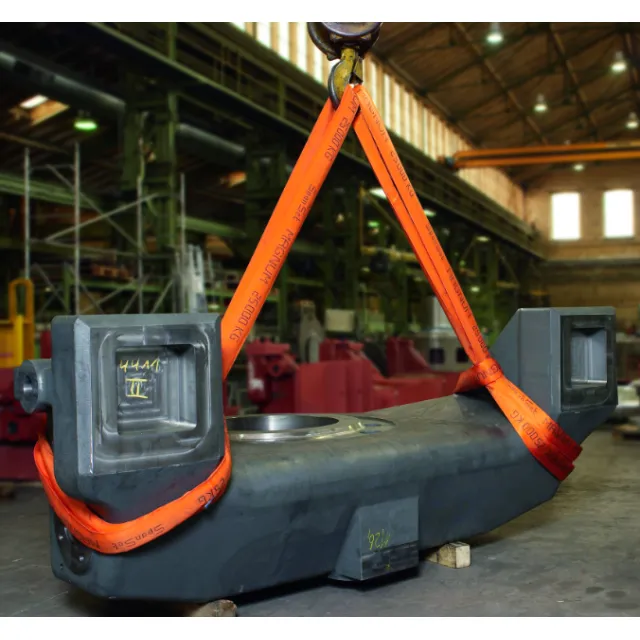

Magnum Plus Round Sling
Australian Made – Australian Tested – Australian Certified
- Heavy duty sleeve with WLL data woven into sleeve for unmistakable capacity identification
- 40% thicker sleeve giving increased durability and up to 4 times longer service.
Thicker sleeve means better protection of internal fibres - Raised ribs on sleeve improves gliding characteristics when choking and inproves cut and abrasion resistance.
- Variable load bearing point for more even wear.
- Ideal for choke lifting cylindrical objects.
- High strength to weight ratio.
- Load bearing fibres protected by the outer sleeve.
- Wide choice of lifting modes.
- Tuff Tag, webbing reinforced encapsulated compliance labels.
- Certified to AS 4497:2018.
- Safety factor 7:1
For a 10th of a metre, add length to required WLL value e.g. MP20000-0x5.5
For over 8.0m lengths, add length to required WLL value e.g. MP20000-0x12.0
*For WLL larger than 150000kg please contact SpanSet to discuss.
Product advantages
Made in Australia
Made, Tested and Certified.
Product Technical Information
-
Dimension L1 max
60 m -
Safety Factor
7:1 -
Label Protection
Yes -
Main Material
Polyester -
Standards
AS 4497:2018 -
Packaging Unit (PU)
pcs -
Temperature Range
-40⁰C to 100⁰C -
Packaging Unit (PU) Content
1 -
Colour
Orange
Technical Drawings
Variants information
| Item Number | Item Name | Price | Stock | Purchase | WLL t | Dimension L1 | Dimension L1 min | Contact Thickness Under Load | Minimum Load Edge Radius | Weight Net | Weight per Meter | Contact Width Under Load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2028506
MP10000-0x1.5 |
MagnumPlus 10t 1.5m |
Price under request |
10 t | 1.5 m | 1.5 m | 19 mm | 57 mm | 3.3 kg | 2.2 kg/m | 90 mm | ||
| 2028507
MP10000-0x2.0 |
MagnumPlus 10t 2m |
Price under request |
10 t | 2 m | 1.5 m | 19 mm | 57 mm | 4.4 kg | 2.2 kg/m | 90 mm | ||
| 2028518
MP10000-0x3.0 |
MagnumPlus 10t 3m |
Price under request |
10 t | 3 m | 1.5 m | 19 mm | 57 mm | 6.6 kg | 2.2 kg/m | 90 mm | ||
| 2028519
MP10000-0x4.0 |
MagnumPlus 10t 4m |
Price under request |
10 t | 4 m | 1.5 m | 19 mm | 57 mm | 8.8 kg | 2.2 kg/m | 90 mm | ||
| 2028520
MP10000-0x5.0 |
MagnumPlus 10t 5m |
Price under request |
10 t | 5 m | 1.5 m | 19 mm | 57 mm | 11 kg | 2.2 kg/m | 90 mm | ||
| 2028521
MP10000-0x6.0 |
MagnumPlus 10t 6m |
Price under request |
10 t | 6 m | 1.5 m | 19 mm | 57 mm | 13.2 kg | 2.2 kg/m | 90 mm | ||
| 2028522
MP10000-0x8.0 |
MagnumPlus 10t 8m |
Price under request |
10 t | 8 m | 1.5 m | 19 mm | 57 mm | 17.6 kg | 2.2 kg/m | 90 mm | ||
| 2028523
MP15000-0x1.5 |
MagnumPlus 15t 1.5m |
Price under request |
15 t | 1.5 m | 1.5 m | 21 mm | 63 mm | 4.8 kg | 3.2 kg/m | 115 mm | ||
| 2028524
MP15000-0x2.0 |
MagnumPlus 15t 2m |
Price under request |
15 t | 2 m | 1.5 m | 21 mm | 63 mm | 6.4 kg | 3.2 kg/m | 115 mm | ||
| 2028525
MP15000-0x3.0 |
MagnumPlus 15t 3m |
Price under request |
15 t | 3 m | 1.5 m | 21 mm | 63 mm | 9.6 kg | 3.2 kg/m | 115 mm | ||
| 2028526
MP15000-0x4.0 |
MagnumPlus 15t 4m |
Price under request |
15 t | 4 m | 1.5 m | 21 mm | 63 mm | 12.8 kg | 3.2 kg/m | 115 mm | ||
| 2028527
MP15000-0x6.0 |
MagnumPlus 15t 6m |
Price under request |
15 t | 6 m | 1.5 m | 21 mm | 63 mm | 19.2 kg | 3.2 kg/m | 115 mm | ||
| 2028636
MP15000-0x8.0 |
MagnumPlus 15t 8m |
Price under request |
15 t | 8 m | 1.5 m | 21 mm | 63 mm | 25.6 kg | 3.2 kg/m | 115 mm | ||
| 2028637
MP15000-0x10 |
MagnumPlus 15t 10m |
Price under request |
15 t | 10 m | 1.5 m | 21 mm | 63 mm | 32 kg | 3.2 kg/m | 115 mm | ||
| 2028638
MP15000-0x20 |
MagnumPlus 15t 20m |
Price under request |
15 t | 20 m | 1.5 m | 21 mm | 63 mm | 64 kg | 3.2 kg/m | 115 mm | ||
| 2028639
MP15000-0x25 |
MagnumPlus 15t 25m |
Price under request |
15 t | 25 m | 1.5 m | 21 mm | 63 mm | 80 kg | 3.2 kg/m | 115 mm | ||
| 2028640
MP20000-0x2.0 |
MagnumPlus 20t 2m |
Price under request |
20 t | 2 m | 1.8 m | 23 mm | 69 mm | 8.8 kg | 4.4 kg/m | 135 mm | ||
| 2028641
MP20000-0x2.5 |
MagnumPlus 20t 2.5m |
Price under request |
20 t | 2.5 m | 1.8 m | 23 mm | 69 mm | 11 kg | 4.4 kg/m | 135 mm | ||
| 2028642
MP20000-0x3.0 |
MagnumPlus 20t 3m |
Price under request |
20 t | 3 m | 1.8 m | 23 mm | 69 mm | 13.2 kg | 4.4 kg/m | 135 mm | ||
| 2028643
MP20000-0x4.0 |
MagnumPlus 20t 4m |
Price under request |
20 t | 4 m | 1.8 m | 23 mm | 69 mm | 17.6 kg | 4.4 kg/m | 135 mm | ||
| 2028644
MP20000-0x5.0 |
MagnumPlus 20t 5m |
Price under request |
20 t | 5 m | 1.8 m | 23 mm | 69 mm | 22 kg | 4.4 kg/m | 135 mm | ||
| 2028645
MP20000-0x6.0 |
MagnumPlus 20t 6m |
Price under request |
20 t | 6 m | 1.8 m | 23 mm | 69 mm | 26.4 kg | 4.4 kg/m | 135 mm | ||
| 2028646
MP20000-0x8.0 |
MagnumPlus 20t 8m |
Price under request |
20 t | 8 m | 1.8 m | 23 mm | 69 mm | 35.2 kg | 4.4 kg/m | 135 mm | ||
| 2028647
MP20000-0x10 |
MagnumPlus 20t 10m |
Price under request |
20 t | 10 m | 1.8 m | 23 mm | 69 mm | 44 kg | 4.4 kg/m | 135 mm | ||
| 2028648
MP25000-0x2.0 |
MagnumPlus 25t 2m |
Price under request |
25 t | 2 m | 1.8 m | 24 mm | 72 mm | 11.2 kg | 5.6 kg/m | 150 mm | ||
| 2028649
MP25000-0x3.0 |
MagnumPlus 25t 3m |
Price under request |
25 t | 3 m | 1.8 m | 24 mm | 72 mm | 16.8 kg | 5.6 kg/m | 150 mm | ||
| 2028650
MP25000-0x4.0 |
MagnumPlus 25t 4m |
Price under request |
25 t | 4 m | 1.8 m | 24 mm | 72 mm | 22.4 kg | 5.6 kg/m | 150 mm | ||
| 2028651
MP25000-0x5.0 |
MagnumPlus 25t 5m |
Price under request |
25 t | 5 m | 1.8 m | 24 mm | 72 mm | 28 kg | 5.6 kg/m | 150 mm | ||
| 2028652
MP25000-0x6.0 |
MagnumPlus 25t 6m |
Price under request |
25 t | 6 m | 1.8 m | 24 mm | 72 mm | 33.6 kg | 5.6 kg/m | 150 mm | ||
| 2028653
MP25000-0x8.0 |
MagnumPlus 25t 8m |
Price under request |
25 t | 8 m | 1.8 m | 24 mm | 72 mm | 44.8 kg | 5.6 kg/m | 150 mm | ||
| 2028654
MP25000-0x10 |
MagnumPlus 25t 10m |
Price under request |
25 t | 10 m | 1.8 m | 24 mm | 72 mm | 56 kg | 5.6 kg/m | 150 mm | ||
| 2028655
MP25000-0x25 |
MagnumPlus 25t 25m |
Price under request |
25 t | 25 m | 1.8 m | 24 mm | 72 mm | 140 kg | 5.6 kg/m | 150 mm | ||
| 2028656
MP30000-0x2.0 |
MagnumPlus 30t 2m |
Price under request |
30 t | 2 m | 2 m | 27 mm | 81 mm | 14.8 kg | 7.4 kg/m | 170 mm | ||
| 2028657
MP30000-0x2.5 |
MagnumPlus 30t 2.5m |
Price under request |
30 t | 2.5 m | 2 m | 27 mm | 81 mm | 18.5 kg | 7.4 kg/m | 170 mm | ||
| 2028658
MP30000-0x3.0 |
MagnumPlus 30t 3m |
Price under request |
30 t | 3 m | 2 m | 27 mm | 81 mm | 22.2 kg | 7.4 kg/m | 170 mm | ||
| 2028659
MP30000-0x4.0 |
MagnumPlus 30t 4m |
Price under request |
30 t | 4 m | 2 m | 27 mm | 81 mm | 29.6 kg | 7.4 kg/m | 170 mm | ||
| 2028660
MP30000-0x5.0 |
MagnumPlus 30t 5m |
Price under request |
30 t | 5 m | 2 m | 27 mm | 81 mm | 37 kg | 7.4 kg/m | 170 mm | ||
| 2028661
MP30000-0x6.0 |
MagnumPlus 30t 6m |
Price under request |
30 t | 6 m | 2 m | 27 mm | 81 mm | 44.4 kg | 7.4 kg/m | 170 mm | ||
| 2028662
MP30000-0x7.0 |
MagnumPlus 30t 7m |
Price under request |
30 t | 7 m | 2 m | 27 mm | 81 mm | 51.8 kg | 7.4 kg/m | 170 mm | ||
| 2028663
MP30000-0x8.0 |
MagnumPlus 30t 8m |
Price under request |
30 t | 8 m | 2 m | 27 mm | 81 mm | 59.2 kg | 7.4 kg/m | 170 mm | ||
| 2028664
MP30000-0x10 |
MagnumPlus 30t 10m |
Price under request |
30 t | 10 m | 2 m | 27 mm | 81 mm | 74 kg | 7.4 kg/m | 170 mm | ||
| 2028665
MP30000-0x15 |
MagnumPlus 30t 15m |
Price under request |
30 t | 15 m | 2 m | 27 mm | 81 mm | 111 kg | 7.4 kg/m | 170 mm | ||
| 2028666
MP30000-0x30 |
MagnumPlus 30t 30m |
Price under request |
30 t | 30 m | 2 m | 27 mm | 81 mm | 222 kg | 7.4 kg/m | 170 mm | ||
| 2028667
MP40000-0x2.0 |
MagnumPlus 40t 2m |
Price under request |
40 t | 2 m | 2 m | 37 mm | 111 mm | 20 kg | 10 kg/m | 190 mm | ||
| 2028668
MP40000-0x2.5 |
MagnumPlus 40t 2.5m |
Price under request |
40 t | 2.5 m | 2 m | 37 mm | 111 mm | 25 kg | 10 kg/m | 190 mm | ||
| 2028669
MP40000-0x3.0 |
MagnumPlus 40t 3m |
Price under request |
40 t | 3 m | 2 m | 37 mm | 111 mm | 30 kg | 10 kg/m | 190 mm | ||
| 2028670
MP40000-0x4.0 |
MagnumPlus 40t 4m |
Price under request |
40 t | 4 m | 2 m | 37 mm | 111 mm | 40 kg | 10 kg/m | 190 mm | ||
| 2028671
MP40000-0x6.0 |
MagnumPlus 40t 6m |
Price under request |
40 t | 6 m | 2 m | 37 mm | 111 mm | 60 kg | 10 kg/m | 190 mm | ||
| 2028672
MP40000-0x8.0 |
MagnumPlus 40t 8m |
Price under request |
40 t | 8 m | 2 m | 37 mm | 111 mm | 80 kg | 10 kg/m | 190 mm | ||
| 2028673
MP40000-0x10 |
MagnumPlus 40t 10m |
Price under request |
40 t | 10 m | 2 m | 37 mm | 111 mm | 100 kg | 10 kg/m | 190 mm | ||
| 2028674
MP40000-0x20 |
MagnumPlus 40t 20m |
Price under request |
40 t | 20 m | 2 m | 37 mm | 111 mm | 200 kg | 10 kg/m | 190 mm | ||
| 2028675
MP40000-0x30 |
MagnumPlus 40t 30m |
Price under request |
40 t | 30 m | 2 m | 37 mm | 111 mm | 300 kg | 10 kg/m | 190 mm | ||
| 2028676
MP50000-0x2.0 |
MagnumPlus 50t 2m |
Price under request |
50 t | 2 m | 2 m | 65 mm | 195 mm | 26 kg | 13 kg/m | 190 mm | ||
| 2028677
MP50000-0x3.0 |
MagnumPlus 50t 3m |
Price under request |
50 t | 3 m | 2 m | 65 mm | 195 mm | 39 kg | 13 kg/m | 190 mm | ||
| 2028678
MP50000-0x4.0 |
MagnumPlus 50t 4m |
Price under request |
50 t | 4 m | 2 m | 65 mm | 195 mm | 52 kg | 13 kg/m | 190 mm | ||
| 2028679
MP50000-0x5.0 |
MagnumPlus 50t 5m |
Price under request |
50 t | 5 m | 2 m | 65 mm | 195 mm | 65 kg | 13 kg/m | 190 mm | ||
| 2028680
MP50000-0x6.0 |
MagnumPlus 50t 6m |
Price under request |
50 t | 6 m | 2 m | 65 mm | 195 mm | 78 kg | 13 kg/m | 190 mm | ||
| 2028681
MP50000-0x7.0 |
MagnumPlus 50t 7m |
Price under request |
50 t | 7 m | 2 m | 65 mm | 195 mm | 91 kg | 13 kg/m | 190 mm | ||
| 2028682
MP50000-0x8.0 |
MagnumPlus 50t 8m |
Price under request |
50 t | 8 m | 2 m | 65 mm | 195 mm | 104 kg | 13 kg/m | 190 mm | ||
| 2028683
MP50000-0x10 |
MagnumPlus 50t 10m |
Price under request |
50 t | 10 m | 2 m | 65 mm | 195 mm | 130 kg | 13 kg/m | 190 mm | ||
| 2028684
MP50000-0x20 |
MagnumPlus 50t 20m |
Price under request |
50 t | 20 m | 2 m | 65 mm | 195 mm | 260 kg | 13 kg/m | 190 mm | ||
| 2028685
MP60000-0x2.0 |
MagnumPlus 60t 2m |
Price under request |
60 t | 2 m | 2 m | 75 mm | 225 mm | 29.6 kg | 14.8 kg/m | 220 mm | ||
| 2028686
MP60000-0x4.0 |
MagnumPlus 60t 4m |
Price under request |
60 t | 4 m | 2 m | 75 mm | 225 mm | 59.2 kg | 14.8 kg/m | 220 mm | ||
| 2028687
MP60000-0x6.0 |
MagnumPlus 60t 6m |
Price under request |
60 t | 6 m | 2 m | 75 mm | 225 mm | 88.8 kg | 14.8 kg/m | 220 mm | ||
| 2028688
MP60000-0x8.0 |
MagnumPlus 60t 8m |
Price under request |
60 t | 8 m | 2 m | 75 mm | 225 mm | 118.4 kg | 14.8 kg/m | 220 mm | ||
| 2028689
MP60000-0x10 |
MagnumPlus 60t 10m |
Price under request |
60 t | 10 m | 2 m | 75 mm | 225 mm | 148 kg | 14.8 kg/m | 220 mm | ||
| 2028690
MP80000-0x2.0 |
MagnumPlus 80t 2m |
Price under request |
80 t | 2 m | 2 m | 86 mm | 258 mm | 40 kg | 20 kg/m | 230 mm | ||
| 2028691
MP80000-0x3.0 |
MagnumPlus 80t 3m |
Price under request |
80 t | 3 m | 2 m | 86 mm | 258 mm | 60 kg | 20 kg/m | 230 mm | ||
| 2028692
MP80000-0x4.0 |
MagnumPlus 80t 4m |
Price under request |
80 t | 4 m | 2 m | 86 mm | 258 mm | 80 kg | 20 kg/m | 230 mm | ||
| 2028693
MP80000-0x6.0 |
MagnumPlus 80t 6m |
Price under request |
80 t | 6 m | 2 m | 86 mm | 258 mm | 120 kg | 20 kg/m | 230 mm | ||
| 2028694
MP80000-0x7.0 |
MagnumPlus 80t 7m |
Price under request |
80 t | 7 m | 2 m | 86 mm | 258 mm | 140 kg | 20 kg/m | 230 mm | ||
| 2028695
MP80000-0x8.0 |
MagnumPlus 80t 8m |
Price under request |
80 t | 8 m | 2 m | 86 mm | 258 mm | 160 kg | 20 kg/m | 230 mm | ||
| 2028696
MP80000-0x15 |
MagnumPlus 80t 15m |
Price under request |
80 t | 15 m | 2 m | 86 mm | 258 mm | 300 kg | 20 kg/m | 230 mm | ||
| 2028697
MP100000-0x2.0 |
MagnumPlus 100t 2m |
Price under request |
100 t | 2 m | 2 m | 96 mm | 288 mm | 52 kg | 26 kg/m | 260 mm | ||
| 2028698
MP100000-0x2.5 |
MagnumPlus 100t 2.5m |
Price under request |
100 t | 2.5 m | 2 m | 96 mm | 288 mm | 65 kg | 26 kg/m | 260 mm | ||
| 2028699
MP100000-0x3.0 |
MagnumPlus 100t 3m |
Price under request |
100 t | 3 m | 2 m | 96 mm | 288 mm | 78 kg | 26 kg/m | 260 mm | ||
| 2028700
MP100000-0x4.0 |
MagnumPlus 100t 4m |
Price under request |
100 t | 4 m | 2 m | 96 mm | 288 mm | 104 kg | 26 kg/m | 260 mm | ||
| 2028701
MP100000-0x5.0 |
MagnumPlus 100t 5m |
Price under request |
100 t | 5 m | 2 m | 96 mm | 288 mm | 130 kg | 26 kg/m | 260 mm | ||
| 2028702
MP100000-0x6.0 |
MagnumPlus 100t 6m |
Price under request |
100 t | 6 m | 2 m | 96 mm | 288 mm | 156 kg | 26 kg/m | 260 mm | ||
| 2028703
MP100000-0x7.0 |
MagnumPlus 100t 7m |
Price under request |
100 t | 7 m | 2 m | 96 mm | 288 mm | 182 kg | 26 kg/m | 260 mm | ||
| 2028704
MP100000-0x8.0 |
MagnumPlus 100t 8m |
Price under request |
100 t | 8 m | 2 m | 96 mm | 288 mm | 208 kg | 26 kg/m | 260 mm | ||
| 2028705
MP125000-0x2.0 |
MagnumPlus 125t 2m |
Price under request |
125 t | 2 m | 2 m | 120 mm | 360 mm | 67.6 kg | 33.8 kg/m | 325 mm | ||
| 2028706
MP125000-0x8.0 |
MagnumPlus 125t 8m |
Price under request |
125 t | 8 m | 2 m | 120 mm | 360 mm | 270.4 kg | 33.8 kg/m | 325 mm | ||
| 2028707
MP125000-0x11 |
MagnumPlus 125t 11m |
Price under request |
125 t | 11 m | 2 m | 120 mm | 360 mm | 371.8 kg | 33.8 kg/m | 325 mm | ||
| 2028708
MP150000-0x2.0 |
MagnumPlus 150t 2m |
Price under request |
150 t | 2 m | 2 m | 144 mm | 432 mm | 83.2 kg | 41.6 kg/m | 390 mm | ||
| 2028709
MP150000-0x3.0 |
MagnumPlus 150t 3m |
Price under request |
150 t | 3 m | 2 m | 144 mm | 432 mm | 124.8 kg | 41.6 kg/m | 390 mm | ||
| 2028710
MP150000-0x4.0 |
MagnumPlus 150t 4m |
Price under request |
150 t | 4 m | 2 m | 144 mm | 432 mm | 166.4 kg | 41.6 kg/m | 390 mm | ||
| 2028711
MP150000-0x6.0 |
MagnumPlus 150t 6m |
Price under request |
150 t | 6 m | 2 m | 144 mm | 432 mm | 249.6 kg | 41.6 kg/m | 390 mm | ||
| 2028712
MP150000-0x8.0 |
MagnumPlus 150t 8m |
Price under request |
150 t | 8 m | 2 m | 144 mm | 432 mm | 332.8 kg | 41.6 kg/m | 390 mm |
Product downloads and manuals
Datasheet
Download
Download
