Up to 50% lighter and up to 50% slimmer than conventional slings

Item Number: 2021701

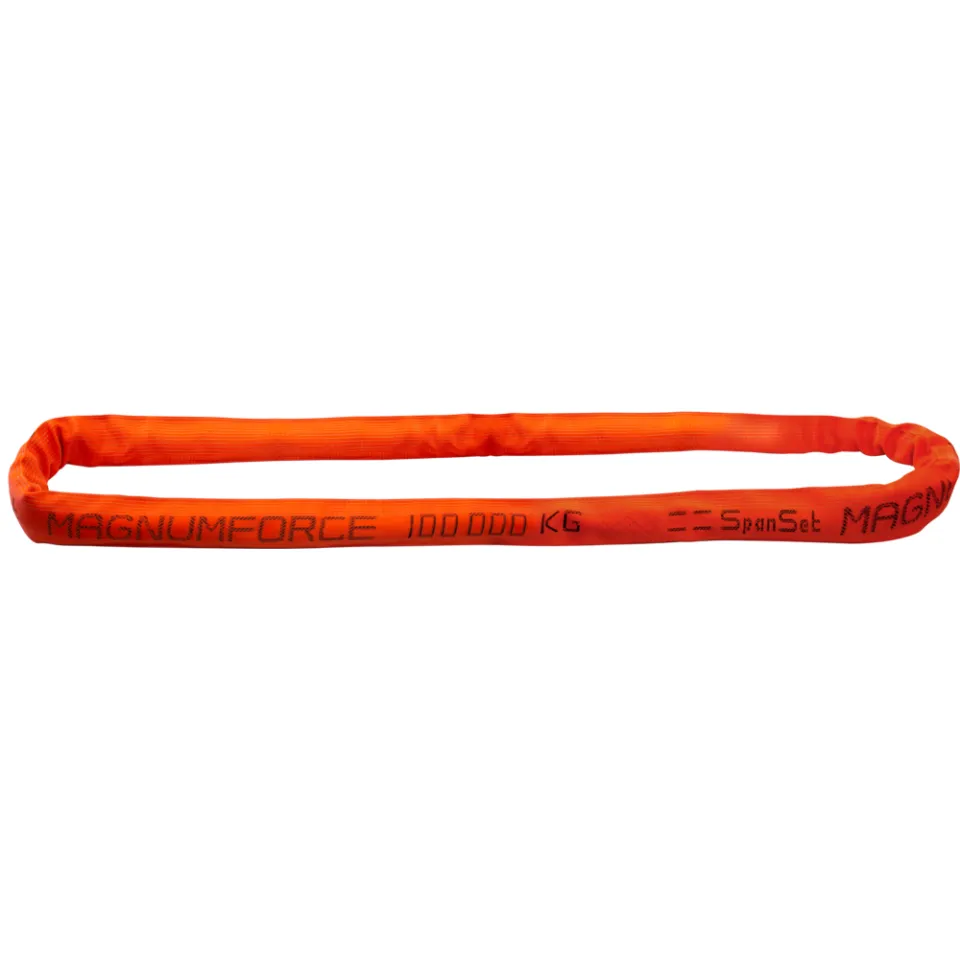

MagnumForce 10000 4m
Roundsling, heavy-duty, orange, WLL 10t, 4m
  • Better interface with shackles, hardware and fittings.
  • Heavy duty sleeve with WLL data woven into sleeve for unmistakable capacity identification.
  • 40% thicker sleeve giving increased durability and up to 4 times longer service.
  • Thicker sleeve means better protection of internal fibres.

Select Model

...

Made in Australia

Made, Tested and Certified.

SpanSet Magnum Force Heavy Duty High Capacity Round Slings

Australian Made – Australian Tested – Australian Certified.

  • Up to 50% lighter and up to 50% slimmer than conventional slings
  • Better interface with shackles, hardware and fittings
  • Heavy duty sleeve with WLL data woven into sleeve for unmistakable capacity identification
  • 40% thicker sleeve giving increased durability and up to 4 times longer service
  • Thicker sleeve means better protection of internal fibres
  • Raised ribs on sleeve improves gliding characteristics when choking and inproves cut and abrasion resistance
  • Variable load bearing point for more even wear
  • Ideal for choke lifting cylindrical objects
  • Lifts smooth objects without damage
  • Lightweight and soft – reduced manual handling injuries
  • High strength to weight ratio
  • Load bearing fibres protected by the outer sleeve
  • Wide choice of lifting modes
  • Tuff Tag, webbing reinforced encapsulated compliance labels
  • For WLL larger than 150000kg please contact SpanSet to discuss

Product Technical Information

  • Safety Factor
  • Standards
  • Dimension L1 max
    60 m
  • Label Protection
  • Main Material
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1
  • Private Label
  • Temperature Range

Technical Drawings

Item Number Item Name WLL kg Contact Width Under Load Weight per Meter Weight Net WLL t Dimension L1 min Dimension L1 Colour Contact Thickness Under Load Minimum Load Edge Radius
2021701 MagnumForce 10000 4m 10000 kg 70 mm 0.8 kg/m 3.2 kg 10 t 3 m 4 m orange 7 mm
2021702 MagnumForce 10000 5m 10000 kg 70 mm 0.8 kg/m 4 kg 10 t 3 m 5 m orange 7 mm
2021703 MagnumForce 10000 6m 10000 kg 70 mm 0.8 kg/m 4.8 kg 10 t 3 m 6 m orange 7 mm
2021704 MagnumForce 10000 7m 10000 kg 70 mm 0.8 kg/m 5.6 kg 10 t 3 m 7 m orange 7 mm
2021705 MagnumForce 10000 8m 10000 kg 70 mm 0.8 kg/m 6.4 kg 10 t 3 m 8 m orange 7 mm
2021706 MagnumForce 20000 4m 20000 kg 91 mm 1.6 kg/m 6.4 kg 20 t 3 m 4 m orange 18 mm
2021707 MagnumForce 20000 5m 20000 kg 91 mm 1.6 kg/m 8 kg 20 t 3 m 5 m orange 18 mm
2021708 MagnumForce 20000 6m 20000 kg 91 mm 1.6 kg/m 9.6 kg 20 t 3 m 6 m orange 18 mm
2021709 MagnumForce 20000 7m 20000 kg 91 mm 1.6 kg/m 11.2 kg 20 t 3 m 7 m orange 18 mm
2021710 MagnumForce 20000 8m 20000 kg 91 mm 1.6 kg/m 12.8 kg 20 t 3 m 8 m orange 18 mm
2021711 MagnumForce 30000 4m 30000 kg 115 mm 2.6 kg/m 10.4 kg 30 t 3 m 4 m orange 20 mm
2021712 MagnumForce 30000 5m 30000 kg 115 mm 2.6 kg/m 13 kg 30 t 3 m 5 m orange 20 mm
2021713 MagnumForce 30000 6m 30000 kg 115 mm 2.6 kg/m 15.6 kg 30 t 3 m 6 m orange 20 mm
2021714 MagnumForce 30000 7m 30000 kg 115 mm 2.6 kg/m 18.2 kg 30 t 3 m 7 m orange 20 mm
2021715 MagnumForce 30000 8m 30000 kg 115 mm 2.6 kg/m 20.8 kg 30 t 3 m 8 m orange 20 mm
2021716 MagnumForce 40000 4m 40000 kg 135 mm 3.4 kg/m 13.6 kg 40 t 3 m 4 m orange 22 mm
2021717 MagnumForce 40000 5m 40000 kg 135 mm 3.4 kg/m 17 kg 40 t 3 m 5 m orange 22 mm
2021718 MagnumForce 40000 6m 40000 kg 135 mm 3.4 kg/m 20.4 kg 40 t 3 m 6 m orange 22 mm
2021719 MagnumForce 40000 7m 40000 kg 135 mm 3.4 kg/m 23.8 kg 40 t 3 m 7 m orange 22 mm
2021720 MagnumForce 40000 8m 40000 kg 135 mm 3.4 kg/m 27.2 kg 40 t 3 m 8 m orange 22 mm
2021721 MagnumForce 50000 4m 50000 kg 152 mm 4.2 kg/m 16.8 kg 50 t 3 m 4 m orange 23 mm
2021722 MagnumForce 50000 5m 50000 kg 152 mm 4.2 kg/m 21 kg 50 t 3 m 5 m orange 23 mm
2021723 MagnumForce 50000 6m 50000 kg 152 mm 4.2 kg/m 25.2 kg 50 t 3 m 6 m orange 23 mm
2021724 MagnumForce 50000 7m 50000 kg 152 mm 4.2 kg/m 29.4 kg 50 t 3 m 7 m orange 23 mm
2021725 MagnumForce 50000 8m 50000 kg 152 mm 4.2 kg/m 33.6 kg 50 t 3 m 8 m orange 23 mm
2021726 MagnumForce 60000 4m 60000 kg 165 mm 5 kg/m 20 kg 60 t 3 m 4 m orange 23 mm
2021727 MagnumForce 60000 5m 60000 kg 165 mm 5 kg/m 25 kg 60 t 3 m 5 m orange 23 mm
2021728 MagnumForce 60000 6m 60000 kg 165 mm 5 kg/m 30 kg 60 t 3 m 6 m orange 23 mm
2021729 MagnumForce 60000 7m 60000 kg 165 mm 5 kg/m 35 kg 60 t 3 m 7 m orange 23 mm
2021730 MagnumForce 60000 8m 60000 kg 165 mm 5 kg/m 40 kg 60 t 3 m 8 m orange 23 mm
2021731 MagnumForce 80000 4m 80000 kg 200 mm 6.1 kg/m 24.4 kg 80 t 3 m 4 m orange 27 mm
2021732 MagnumForce 80000 5m 80000 kg 200 mm 6.1 kg/m 30.5 kg 80 t 3 m 5 m orange 27 mm
2021733 MagnumForce 80000 6m 80000 kg 200 mm 6.1 kg/m 36.6 kg 80 t 3 m 6 m orange 27 mm
2021734 MagnumForce 80000 7m 80000 kg 200 mm 6.1 kg/m 42.7 kg 80 t 3 m 7 m orange 27 mm
2021735 MagnumForce 80000 8m 80000 kg 200 mm 6.1 kg/m 48.8 kg 80 t 3 m 8 m orange 27 mm
2021736 MagnumForce 100000 4m 100000 kg 190 mm 7.1 kg/m 28.4 kg 100 t 3 m 4 m orange 35 mm
2021737 MagnumForce 100000 5m 100000 kg 190 mm 7.1 kg/m 35.5 kg 100 t 3 m 5 m orange 35 mm
2021738 MagnumForce 100000 6m 100000 kg 190 mm 7.1 kg/m 42.6 kg 100 t 3 m 6 m orange 35 mm
2021739 MagnumForce 100000 7m 100000 kg 190 mm 7.1 kg/m 49.7 kg 100 t 3 m 7 m orange 35 mm
2021740 MagnumForce 100000 8m 100000 kg 190 mm 7.1 kg/m 56.8 kg 100 t 3 m 8 m orange 35 mm
2028922 MF10000-0x2.0 10000 kg 55 mm 1 kg/m 2 kg 10 t 1.5 m 2 m Orange 12 mm 36 mm
2028923 MF10000-0x2.5 10000 kg 55 mm 1 kg/m 2.5 kg 10 t 1.5 m 2.5 m Orange 12 mm 36 mm
2028924 MF10000-0x3.0 10000 kg 55 mm 1 kg/m 3 kg 10 t 1.5 m 3 m Orange 12 mm 36 mm
2028925 MF10000-0x4.0 10000 kg 55 mm 1 kg/m 4 kg 10 t 1.5 m 4 m Orange 12 mm 36 mm
2028926 MF10000-0x5.0 10000 kg 55 mm 1 kg/m 5 kg 10 t 1.5 m 5 m Orange 12 mm 36 mm
2028927 MF10000-0x6.0 10000 kg 55 mm 1 kg/m 6 kg 10 t 1.5 m 6 m Orange 12 mm 36 mm
2028928 MF10000-0x7.0 10000 kg 55 mm 1 kg/m 7 kg 10 t 1.5 m 7 m Orange 12 mm 36 mm
2028929 MF10000-0x8.0 10000 kg 55 mm 1 kg/m 8 kg 10 t 1.5 m 8 m Orange 12 mm 36 mm
2028930 MF10000-0x10 10000 kg 55 mm 1 kg/m 10 kg 10 t 1.5 m 10 m Orange 12 mm 36 mm
2028931 MF20000-0x1.5 20000 kg 80 mm 2.3 kg/m 3.45 kg 20 t 1.5 m 1.5 m Orange 15 mm 45 mm
2028932 MF20000-0x1.8 20000 kg 80 mm 2.3 kg/m 4.14 kg 20 t 1.5 m 1.8 m Orange 15 mm 45 mm
2028933 MF20000-0x2.0 20000 kg 80 mm 2.3 kg/m 4.6 kg 20 t 1.5 m 2 m Orange 15 mm 45 mm
2028934 MF20000-0x2.5 20000 kg 80 mm 2.3 kg/m 5.75 kg 20 t 1.5 m 2.5 m Orange 15 mm 45 mm
2028935 MF20000-0x3.0 20000 kg 80 mm 2.3 kg/m 6.9 kg 20 t 1.5 m 3 m Orange 15 mm 45 mm
2028936 MF20000-0x4.0 20000 kg 80 mm 2.3 kg/m 9.2 kg 20 t 1.5 m 4 m Orange 15 mm 45 mm
2028937 MF20000-0x5.0 20000 kg 80 mm 2.3 kg/m 11.5 kg 20 t 1.5 m 5 m Orange 15 mm 45 mm
2028938 MF20000-0x6.0 20000 kg 80 mm 2.3 kg/m 13.8 kg 20 t 1.5 m 6 m Orange 15 mm 45 mm
2028939 MF20000-0x7.0 20000 kg 80 mm 2.3 kg/m 16.1 kg 20 t 1.5 m 7 m Orange 15 mm 45 mm
2028940 MF20000-0x8.0 20000 kg 80 mm 2.3 kg/m 18.4 kg 20 t 1.5 m 8 m Orange 15 mm 45 mm
2028941 MF20000-0x10 20000 kg 80 mm 2.3 kg/m 23 kg 20 t 1.5 m 10 m Orange 15 mm 45 mm
2028942 MF30000-0x1.5 30000 kg 90 mm 3.5 kg/m 5.25 kg 30 t 1.5 m 1.5 m Orange 20 mm 60 mm
2028943 MF30000-0x2.0 30000 kg 90 mm 3.5 kg/m 7 kg 30 t 1.5 m 2 m Orange 20 mm 60 mm
2028944 MF30000-0x2.5 30000 kg 90 mm 3.5 kg/m 8.75 kg 30 t 1.5 m 2.5 m Orange 20 mm 60 mm
2028945 MF30000-0x3.0 30000 kg 90 mm 3.5 kg/m 10.5 kg 30 t 1.5 m 3 m Orange 20 mm 60 mm
2028946 MF30000-0x4.0 30000 kg 90 mm 3.5 kg/m 14 kg 30 t 1.5 m 4 m Orange 20 mm 60 mm
2028947 MF30000-0x5.0 30000 kg 90 mm 3.5 kg/m 17.5 kg 30 t 1.5 m 5 m Orange 20 mm 60 mm
2028948 MF30000-0x6.0 30000 kg 90 mm 3.5 kg/m 21 kg 30 t 1.5 m 6 m Orange 20 mm 60 mm
2028949 MF30000-0x7.0 30000 kg 90 mm 3.5 kg/m 24.5 kg 30 t 1.5 m 7 m Orange 20 mm 60 mm
2028950 MF30000-0x8.0 30000 kg 90 mm 3.5 kg/m 28 kg 30 t 1.5 m 8 m Orange 20 mm 60 mm
2028951 MF30000-0x10 30000 kg 90 mm 3.5 kg/m 35 kg 30 t 1.5 m 10 m Orange 20 mm 60 mm
2028952 MF30000-0x15 30000 kg 90 mm 3.5 kg/m 52.5 kg 30 t 1.5 m 15 m Orange 20 mm 60 mm
2028953 MF30000-0x20 30000 kg 90 mm 3.5 kg/m 70 kg 30 t 1.5 m 20 m Orange 20 mm 60 mm
2028954 MF40000-0x2.0 40000 kg 110 mm 5.1 kg/m 10.2 kg 40 t 1.5 m 2 m Orange 24 mm 72 mm
2028955 MF40000-0x2.5 40000 kg 110 mm 5.1 kg/m 12.75 kg 40 t 1.5 m 2.5 m Orange 24 mm 72 mm
2028956 MF40000-0x3.0 40000 kg 110 mm 5.1 kg/m 15.3 kg 40 t 1.5 m 3 m Orange 24 mm 72 mm
2028957 MF40000-0x4.0 40000 kg 110 mm 5.1 kg/m 20.4 kg 40 t 1.5 m 4 m Orange 24 mm 72 mm
2028958 MF40000-0x5.0 40000 kg 110 mm 5.1 kg/m 25.5 kg 40 t 1.5 m 5 m Orange 24 mm 72 mm
2028959 MF40000-0x6.0 40000 kg 110 mm 5.1 kg/m 30.6 kg 40 t 1.5 m 6 m Orange 24 mm 72 mm
2028960 MF40000-0x8.0 40000 kg 110 mm 5.1 kg/m 40.8 kg 40 t 1.5 m 8 m Orange 24 mm 72 mm
2028961 MF40000-0x10 40000 kg 110 mm 5.1 kg/m 51 kg 40 t 1.5 m 10 m Orange 24 mm 72 mm
2028962 MF50000-0x2.0 50000 kg 120 mm 5.5 kg/m 11 kg 50 t 1.5 m 2 m Orange 26 mm 78 mm
2028963 MF50000-0x3.0 50000 kg 120 mm 5.5 kg/m 16.5 kg 50 t 1.5 m 3 m Orange 26 mm 78 mm
2028964 MF50000-0x4.0 50000 kg 120 mm 5.5 kg/m 22 kg 50 t 1.5 m 4 m Orange 26 mm 78 mm
2028965 MF50000-0x5.0 50000 kg 120 mm 5.5 kg/m 27.5 kg 50 t 1.5 m 5 m Orange 26 mm 78 mm
2028966 MF50000-0x6.0 50000 kg 120 mm 5.5 kg/m 33 kg 50 t 1.5 m 6 m Orange 26 mm 78 mm
2028967 MF50000-0x8.0 50000 kg 120 mm 5.5 kg/m 44 kg 50 t 1.5 m 8 m Orange 26 mm 78 mm
2028968 MF50000-0x10 50000 kg 120 mm 5.5 kg/m 55 kg 50 t 1.5 m 10 m Orange 26 mm 78 mm
2028969 MF50000-0x15 50000 kg 120 mm 5.5 kg/m 82.5 kg 50 t 1.5 m 15 m Orange 26 mm 78 mm
2028970 MF60000-0x1.5 60000 kg 153 mm 7.9 kg/m 11.85 kg 60 t 1.5 m 1.5 m Orange 36 mm 108 mm
2028971 MF60000-0x2.0 60000 kg 153 mm 7.9 kg/m 15.8 kg 60 t 1.5 m 2 m Orange 36 mm 108 mm
2028972 MF60000-0x2.5 60000 kg 153 mm 7.9 kg/m 19.75 kg 60 t 1.5 m 2.5 m Orange 36 mm 108 mm
2028973 MF60000-0x3.0 60000 kg 153 mm 7.9 kg/m 23.7 kg 60 t 1.5 m 3 m Orange 36 mm 108 mm
2028974 MF60000-0x4.0 60000 kg 153 mm 7.9 kg/m 31.6 kg 60 t 1.5 m 4 m Orange 36 mm 108 mm
2028975 MF60000-0x5.0 60000 kg 153 mm 7.9 kg/m 39.5 kg 60 t 1.5 m 5 m Orange 36 mm 108 mm
2028976 MF60000-0x8.0 60000 kg 153 mm 7.9 kg/m 63.2 kg 60 t 1.5 m 8 m Orange 36 mm 108 mm
2028977 MF60000-0x10 60000 kg 153 mm 7.9 kg/m 79 kg 60 t 1.5 m 10 m Orange 36 mm 108 mm
2028978 MF60000-0x20 60000 kg 153 mm 7.9 kg/m 158 kg 60 t 1.5 m 20 m Orange 36 mm 108 mm
2028979 MF80000-0x1.5 80000 kg 204 mm 10.9 kg/m 16.35 kg 80 t 1.5 m 1.5 m Orange 48 mm 144 mm
2028980 MF80000-0x2.0 80000 kg 204 mm 10.9 kg/m 21.8 kg 80 t 1.5 m 2 m Orange 48 mm 144 mm
2028981 MF80000-0x3.0 80000 kg 204 mm 10.9 kg/m 32.7 kg 80 t 1.5 m 3 m Orange 48 mm 144 mm
2028982 MF80000-0x4.0 80000 kg 204 mm 10.9 kg/m 43.6 kg 80 t 1.5 m 4 m Orange 48 mm 144 mm
2028983 MF80000-0x10 80000 kg 204 mm 10.9 kg/m 109 kg 80 t 1.5 m 10 m Orange 48 mm 144 mm
2028989 MF100000-0x2.5 100000 kg 238 mm 16.8 kg/m 42 kg 100 t 2 m 2.5 m Orange 56 mm 168 mm
2028990 MF100000-0x3.0 100000 kg 238 mm 16.8 kg/m 50.4 kg 100 t 2 m 3 m Orange 56 mm 168 mm
2028991 MF100000-0x4.0 100000 kg 238 mm 16.8 kg/m 67.2 kg 100 t 2 m 4 m Orange 56 mm 168 mm
2028992 MF100000-0x8.0 100000 kg 238 mm 16.8 kg/m 134.4 kg 100 t 2 m 8 m Orange 56 mm 168 mm
2028993 MF100000-0x10 100000 kg 238 mm 16.8 kg/m 168 kg 100 t 2 m 10 m Orange 56 mm 168 mm
2028994 MF100000-0x30 100000 kg 238 mm 16.8 kg/m 504 kg 100 t 2 m 30 m Orange 56 mm 168 mm
2028995 MF125000-0x4.0 125000 kg 272 mm 20.4 kg/m 81.6 kg 125 t 3 m 4 m Orange 70 mm 210 mm
2028996 MF125000-0x8.0 125000 kg 272 mm 20.4 kg/m 163.2 kg 125 t 3 m 8 m Orange 70 mm 210 mm
2028997 MF125000-0x10 125000 kg 272 mm 20.4 kg/m 204 kg 125 t 3 m 10 m Orange 70 mm 210 mm
2028998 MF150000-0x3.0 150000 kg 315 mm 25.4 kg/m 76.2 kg 150 t 3 m 3 m Orange 80 mm 240 mm
2028999 MF150000-0x4.0 150000 kg 315 mm 25.4 kg/m 101.6 kg 150 t 3 m 4 m Orange 80 mm 240 mm
2029000 MF150000-0x10 150000 kg 315 mm 25.4 kg/m 254 kg 150 t 3 m 10 m Orange 80 mm 240 mm
