SpanSet Saverline MEWP SRL W 1.8m Self-Retracting Lifelines Main picture small
SpanSet Saverline MEWP SRL W 1.8m Self-Retracting Lifelines Small picture 1

Saverline for work platforms with aluminium housing

Saverline for work platforms with aluminium housing

Saverline fall arrest

Item Number: 2002361
SSAUS ERP Code: 2002361
Saverline MEWP SRL W 1.8m
  • With aluminium housing
  • The swivel suspension point prevents the webbing from twisting
  • Lightweight, impact resistant housing
  • Energy absorption due to new braking system
  • Edge tested according to VG 11
  • Can be used horizontally and vertically

The Saverline fall arresters with aluminium housing for securing one person in working platforms are tested and approved for securing in working platforms.

The lanyard is double edge tested (2 x r ≥ 0.5 mm). Innovative technology in the area of the integrated energy-absorbing function ensures a force transmission of less than 3 kN into the anchor point! The insert length is 1.8 m.

Product Technical Information

  • Weight Net
    0.96 kg
  • Lifeline Length
    1.8
  • Dimension L
    240
  • Anchor Connector
    29583 IKV35
  • Harness Connector
    29583 IKV35
  • Standards
    EN 360: 2002
  • Temperature Range
    -40° C to + 50° C
  • Lifespan
    10 yr.
  • EAN Code
    7610726103966
  • Dimension B
    84
  • Dimension T
    61
  • Rescue Function
    No
  • Colour
    Red
  • Main Material
    High-performance polyester
  • Individually Serial Numbered
    Yes
  • Individual Certificate
    Yes
  • Multilingual User Instruction Manual
    Yes
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1
  • Temperature Range
    -40° F to + 120° F

Product downloads and manuals

...
Instruction manual
(de de_CH en en_US es fr hu it nl no pl pt)
Download

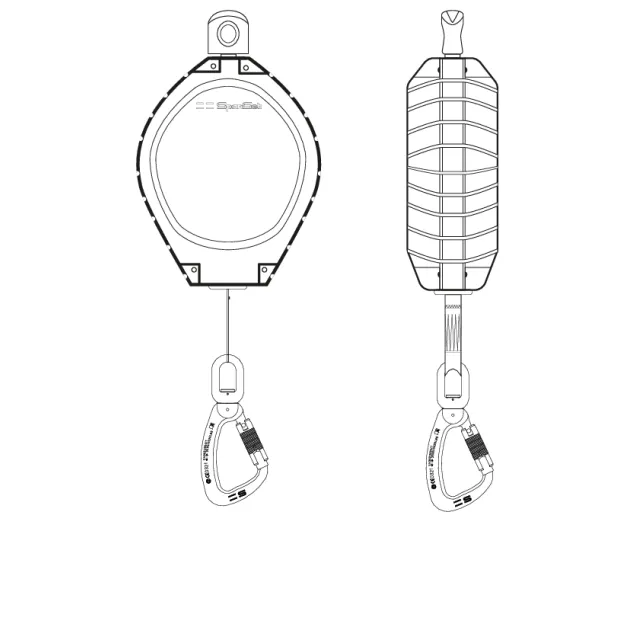

Technical Drawings
