Axzion - Vario J-Hook XL

Careful rotation thanks to patented inner shell

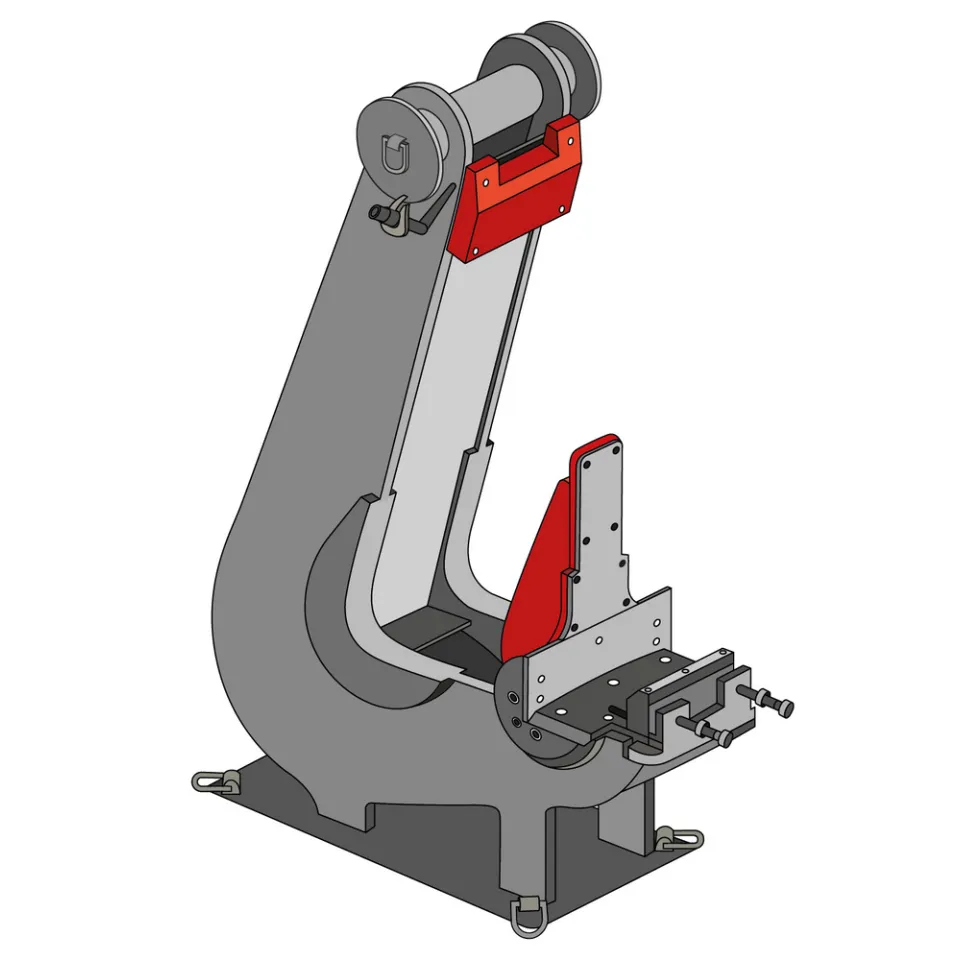

Lifting and rotating tower segments is what the new J-shaped hook was developed for. During rotation, the durable locking tab engages behind the flange. The inner shell on sliding bearings (patent-protected) represents the core innovation which rotates together with the tower flange during rotation. Consequently, deflection forces are not transferred to the flange. All contact surfaces have been protected by durable secutex impact protection and the flange is protected and safe. The externally positioned pivot point makes it possible to use the J-Hook with tower flange thicknesses of between 60 and 220 mm and tower flange heights of between 200 and 600 mm.

Huge time saver

After the hoisting and rotating process the J-Hook can simply be removed by a crane, there is no need for time-consuming installation work. In contrast, permanently fixed attachment points must be removed after the rotation, requiring users to work underneath the suspended load. Working underneath suspended loads is an absolute no-go, the load must therefore be supported on stands which significantly slows down the procedure.

*Optional guy cable system - The guy cable system enables very soft towers to be hoisted and rotated without deformation.
