SP140 Range

Fall Arrest Energy Absorbing Lanyards

SpanSet have manufactured high quality and performance fall arrest lanyards for over 25 years.

The T-Pak shock absorber has been the foundation of our range and has exceeded the performance requirements of EN355 ensuring comfort and safety for workers.

In 2008 SpanSet became a market leader by manufacturing the first fall arrest lanyards that were tested and certified to EN355 for 140kg workers - the ATLAS Lanyard.

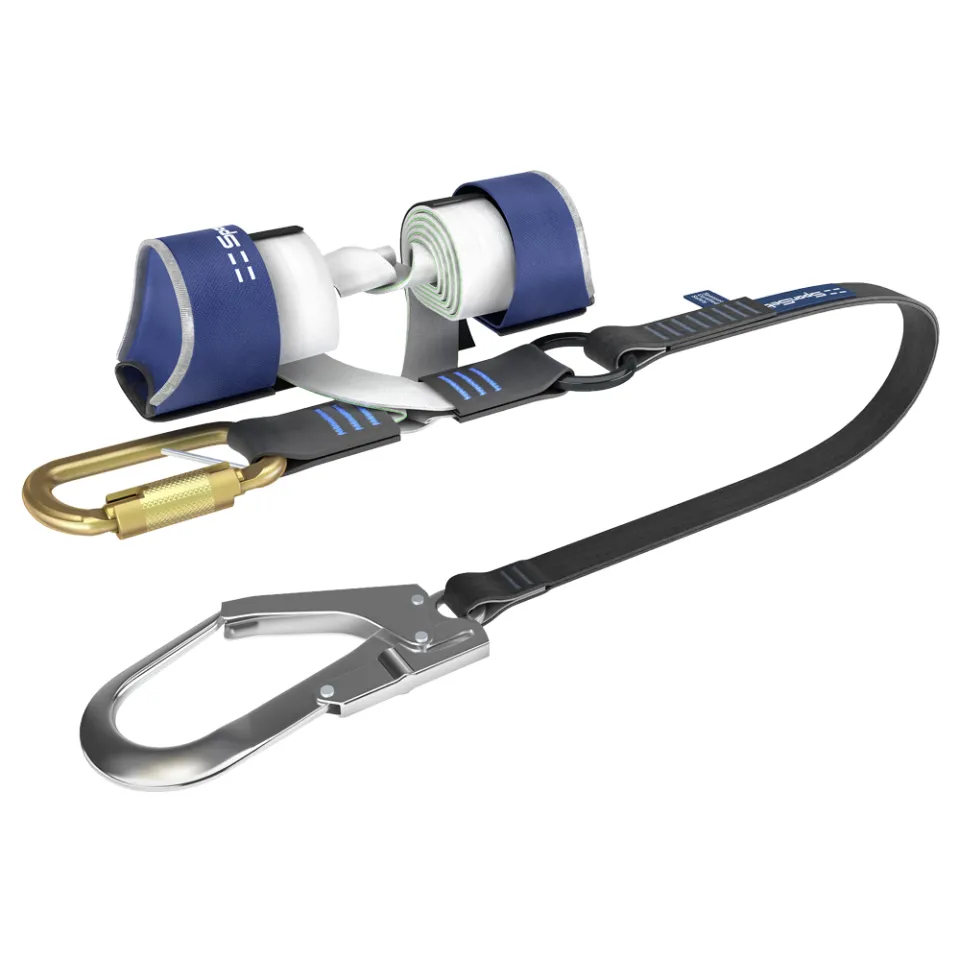

SP140 Shock absorbing pack includes

  • Testing and certification to all the the EN355 performance requirements using a 140kg test mass
  • More clearance height for workers improving on our T-Pak lanyard range
  • Published clearance height data for 80kg, 100kg, 120kg and 140kg workers in the instruction manual
  • Integrated ring allows the lanyard leg to be clipped back to the shock absorbing pack
  • More compact MAX-SPAN configuration giving the lanyard legs a greater effective working length between anchors
  • New cover giving better protection to the energy absorbing webbing and making the unit easier to inspect
  • CE label and traceability data is protected inside the pack for increased longevity
  • *Option of Radio Frequency tracer tagging within the label.

Safe Clearance
distance required

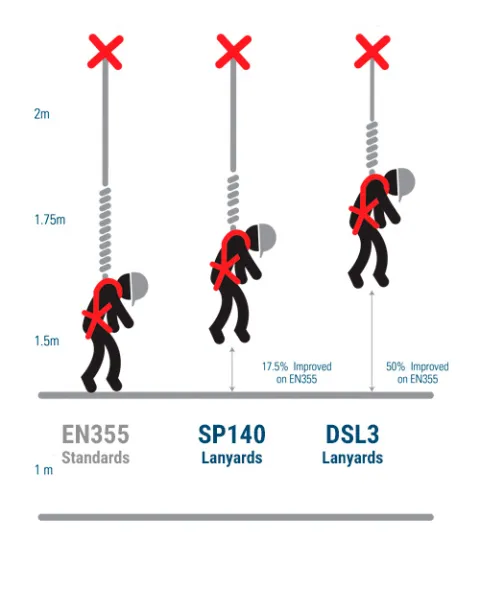

When using fall arrest techniques and lanyards it is important that the user is aware of the safe clearance distance required below their feet.  The graph below demonstrates how thet SpanSet range of lanyards have exceeded the requirements of EN355.

*Testing and certification to all the the EN355 performance requirements using a 140kg test mass

Do you work in areas where the free fall height is minimal?
Discover the DSL3, the lanyard with the shortest fall arrest.

Differences between
Single and Twin
fall arrest lanyards



Single Lanyard Applications

  • Fixed work positions where the anchor point doesn't change.
  • Vertical ladder systems where the user is connected to a single anchor (e.g., fixed vertical lifelines).
  • Confined spaces with minimal need for movement.
  • Low-movement tasks such as inspecting equipment at a stationary point.

Twin Lanyard Applications

  • Climbing structures (e.g., towers, scaffolding) where constant movement between anchor points is required.
  • Construction sites, telecom towers, wind turbines, where moving from point to point is frequent.
  • Maintaining 100% tie-off — the main reason for using twin lanyards.
  • Tasks requiring continuous fall protection while transitioning anchor points.

Choosing the right lanyard based on your job

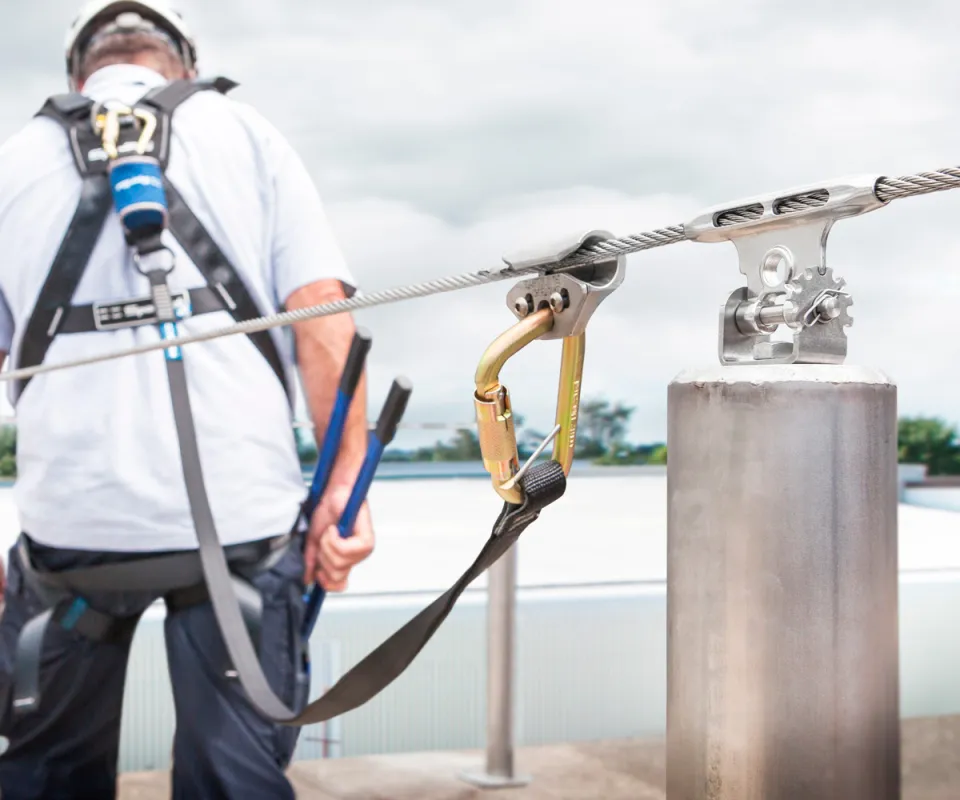

 Fixed or adjustable Energy Absorbing Lanyard

  • Basic and reliable solution.
  • Anchor point is always at a known, optimal distance.
  • Work in a static position.
  • Applications: Inspecting equipment on a roof, MEWP works...

Elasticated Lanyard

  • Convenience and comfort.
  • Best for move frequently across your workspace
  • Reduce snagging, tangling, or tripping on the lanyard.
  • Applications: scaffolding or steel erection.

Looped/Tie-Back Lanyard

  • Wrap the lanyard around a beam, post, or rebar.
  • When there are no dedicated anchorage points.
  • Multi-use tool without carrying extra gear (like anchor slings).




SP140 ENERGY ABSORBING LANYARD RANGE

DOWNLOAD THE BROCHURE
